Electro Mechanical
Additional Product Information
part No | Rotation | Finish | Spring Return | Key Code | Market | Length |
---|---|---|---|---|---|---|

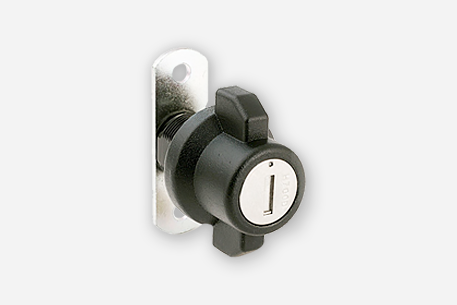

E901RSS | 90° Knob Turn | Silver Powder Coat | N/A | 87,380 possible combinations | Gym, Locker, Storage | 1.125 |
Overview
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-diagram.jpg)
E901-iLOCK-diagram Cam Rotation & Installation
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-rotation1.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-rotation2.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-rotation3.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-rotation4.jpg)
Cam Types
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-cam1.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/E901-iLOCK-cam2.jpg)
