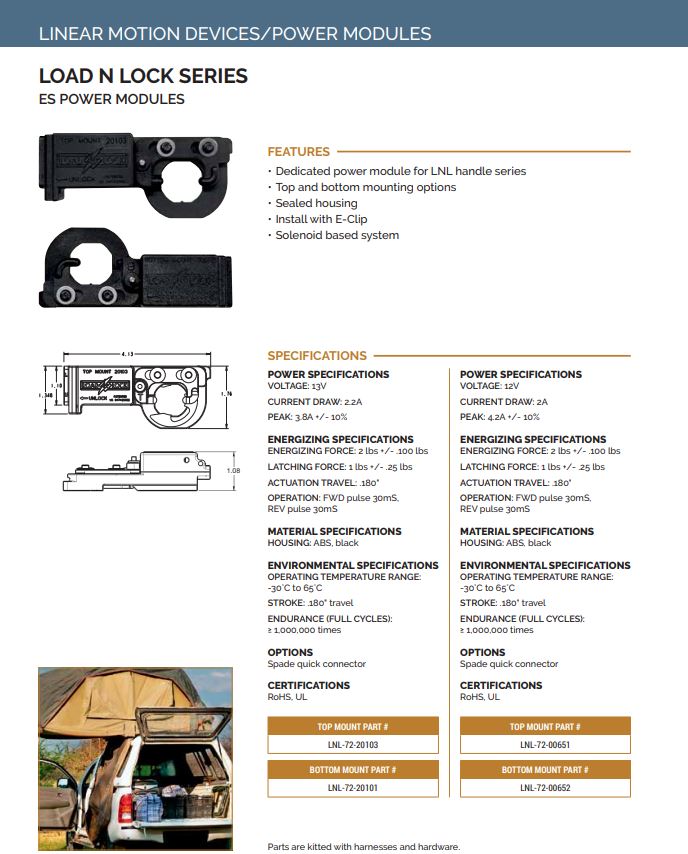

Load N Lock Series

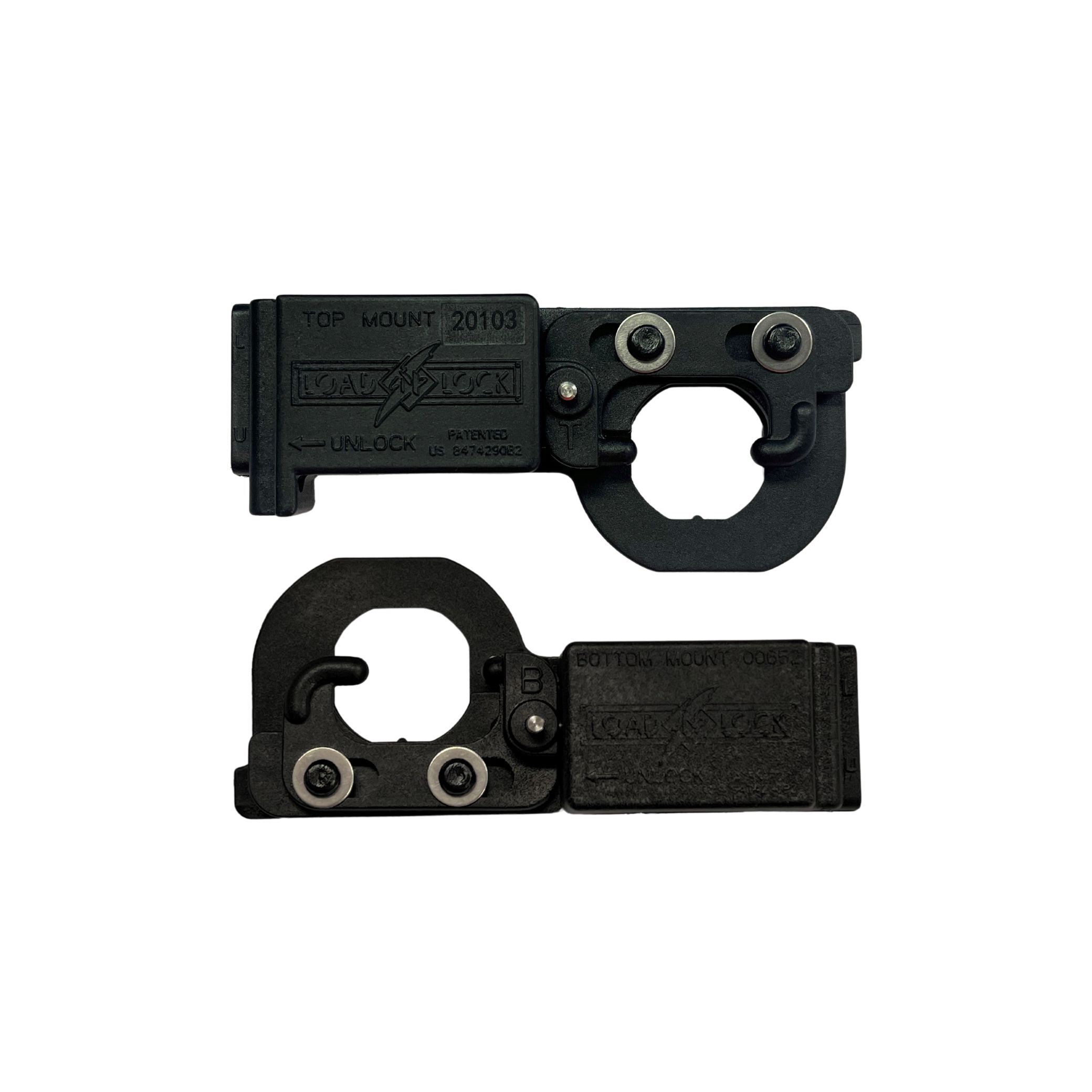

ES Power Modules

Dedicated power module for LNL handle series
Top and bottom mounting options
12V and 13V power options
Sealed housing
To be installed with an E-clip
Solenoid based system
RoHS and UL certified

Part Number	Finish	Material	Size	Voltage	Mounting	Download
LNL-72-00651	Black	Plastic	4.13"L x 1.08"W x 1.76"H	12V	Top mount	2D
LNL-72-00652	Black	Plastic	4.13"L x 1.08"W x 1.76"H	12V	Bottom mount	2D
LNL-72-20103	Black	Plastic	4.13"L x 1.08"W x 1.76"H	13V	Top mount	2D
LNL-72-20101	Black	Plastic	4.13"L x 1.08"W x 1.76"H	13V	Bottom mount	2D
