i-Lock RF PLUS Controller acts as the brains of the electronic system. They act as the activator part of the system and give a desired output to the connected device when the input is received. There are multiple options to choose from when choosing the perfect controller for your application. (2) four-button key fobs included.
Power Specifications
- 12V DC Operation: Constant power source, such as vehicle/machine power.
- Low Power Consumption Mode: Draws 12mA of electrical current in standby mode.
Communication:
- 433 MHz Radio Frequency (RF): Communication with up to 3 total paired key fobs (range up to 60ft).
- Rolling security code pairing.
- Omnidirectional antenna.
Outputs
- 3 individual outputs + 1 LED (2 pin molex connectors)
- 12VDC (+/- 10%)
- Output Current: 20A per output.
- Output Operational Timing Sequence: 500 mS pull, 500 mS push, off.
- LED Operational Timing Sequence: On/Off; turns off in 5 minutes.
Inputs
- 2 inputs paired with outputs
- Input signals defaulted to high 12VDC: Ground (-) signal available via jumper.
- Input 1: Key fob input to output.
- Input 2: Output all + LED
- Disable: Turns off all outputs when on.
Environmental Specifications
- Operating Temperature Range: -20 degrees Celsius to 80 degrees Celsius ~95% RH.
Options
Certifications
- RoHS.
- IP42.
- IC-ID - Canada, C-Tick - AUS/New Zealand, FCC - USA.

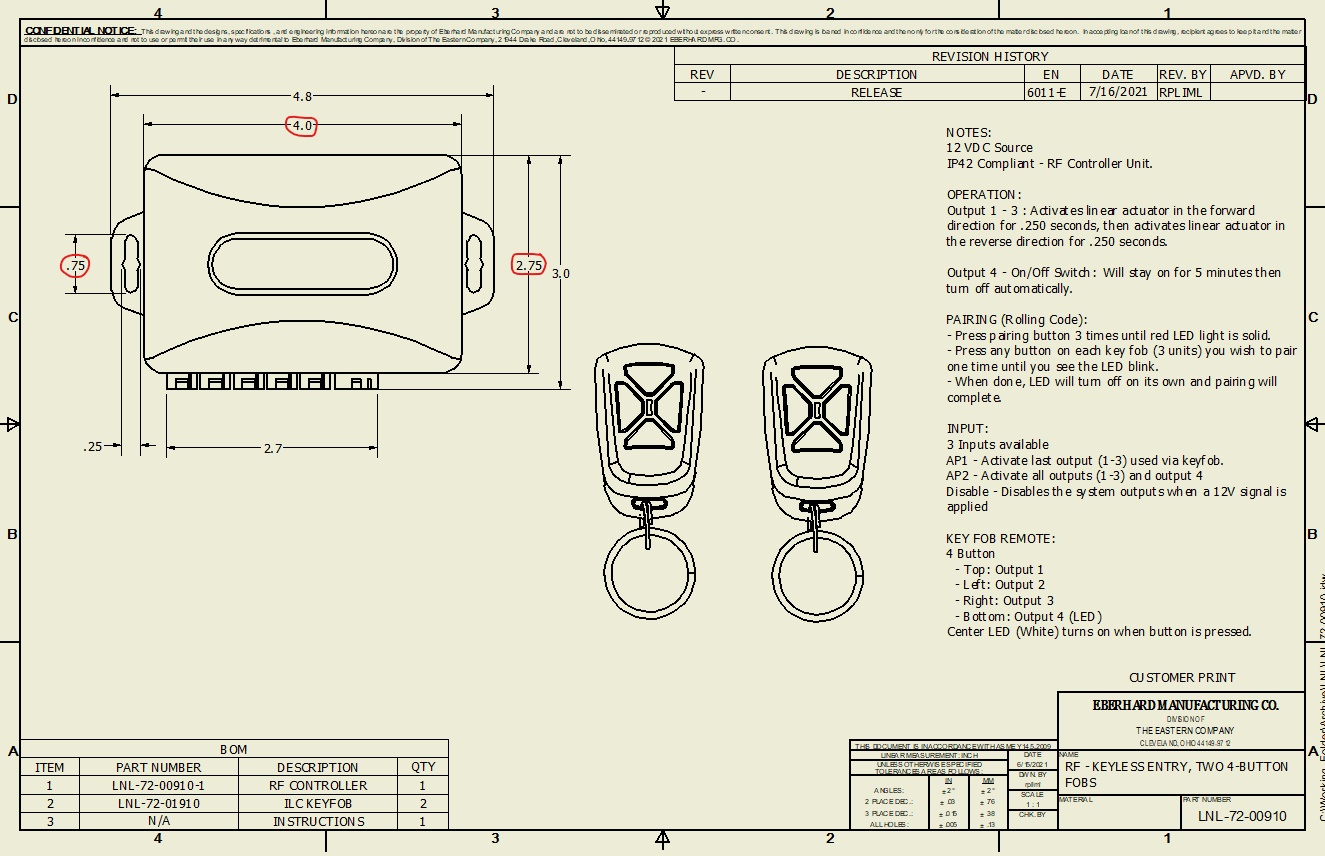

Download 2D Drawing
