S200 Series
Tubular Switch Locks

Maintaining and momentary (spring return) functions
Pole positions: Off-On
Post, screw, or spade terminals available
Customer wire harnessing available
Electrical rating: 5 amps 125 VAC; 2 amps 250 VAC
7 pin tumbler mechanism utilizing a tubular key switch which offers over 750,000 combinations

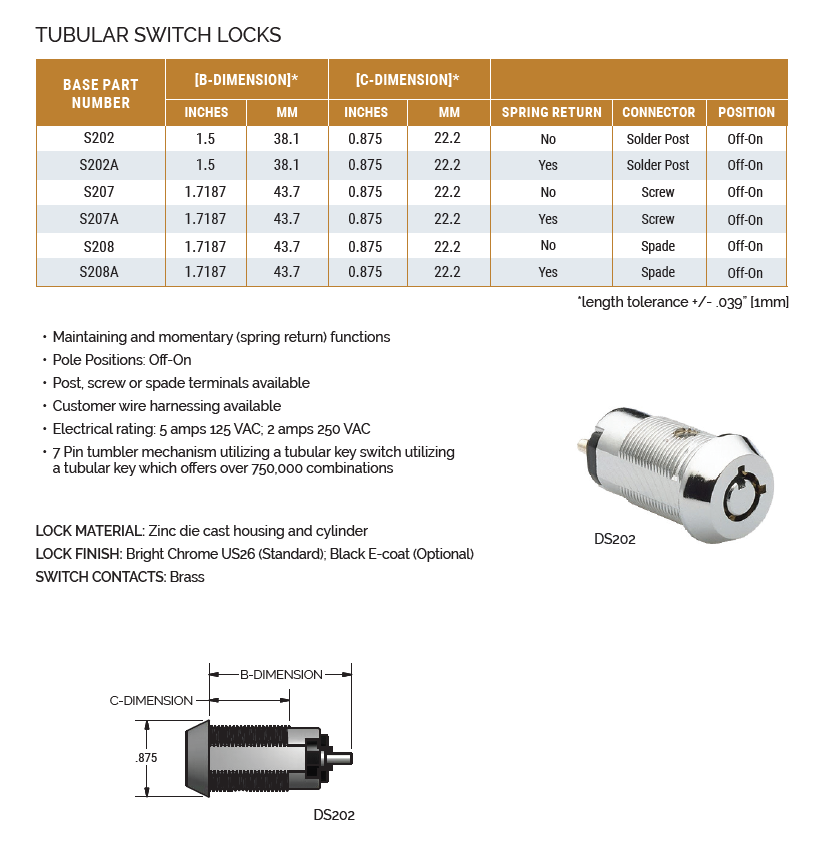

Part Number	Length	Barrel Length	Spring Return	Position	Connector	Download
S202	1.5"	0.875	No	Off-On	Solder post	Spec sheet
S202A	1.5"	0.875	Yes	Off-On	Solder post	Spec sheet
S207	1.7187"	0.875	No	Off-On	Screw	Spec sheet
S207A	1.7187"	0.875	Yes	Off-On	Screw	Spec sheet
S208	1.7187"	0.875	No	Off-On	Spade	Spec sheet
S208A	1.7187"	0.875	Yes	Off-On	Spade	Spec sheet

Accessories + Replacement Parts

Accessories/Replacement Parts

CHROME ESCUTCHEON

PN: S2310A.ALT

BARREL NUT M19

PN: D9868

FLAT WASHER

PN: S2313
