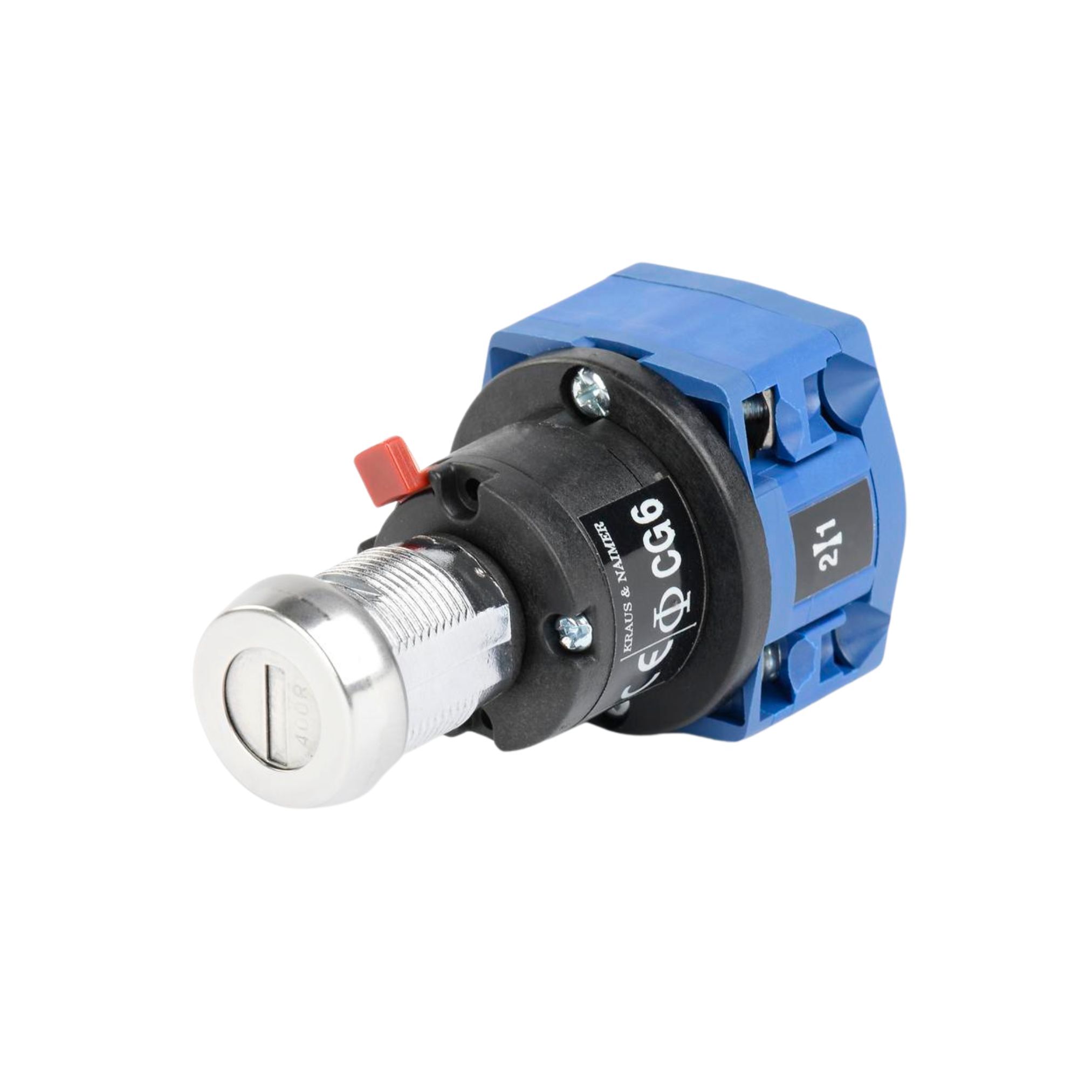

V317 Series
Indoor/Outdoor Key Switch Locks

Screw type terminals
Custom wire harnessing available
V3172NCH6 and V3172NCG6 offer 4 disk tumblers and 50 key codes. V3175NCG6 offers 5 disk tumblers and 200 key codes
Automotive type dust shutter
Custom logo or company name available on plastic key bow
Mounting nut standard. Speed clip is available. Designed for applications from .72" to .11"

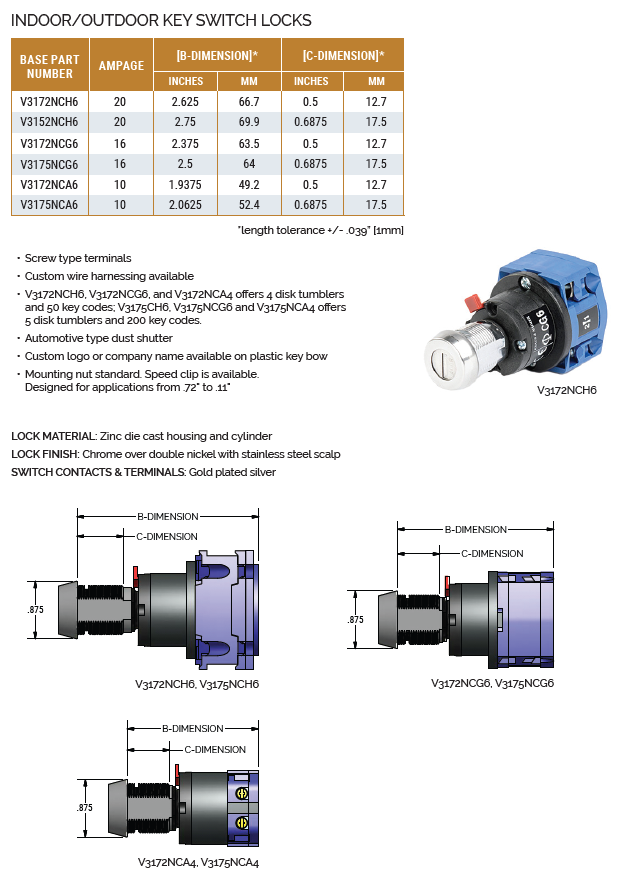

Part Number	Ampage	Length	Barrel Length	Download
V3172NCH6	20	2.625"	.5"	Spec sheet
V3172NCG6	16	2.375"	.5"	Spec sheet
V3175NCG6	16	2.5"	0.6875"	Spec sheet

Accessories + Replacement Parts

Accessories/Replacement Parts

RUBBER GASKET

PN: R7163

GASKET

PN: 9741

NUT LOCK

PN: S9003A

BARREL NUT M19

PN: D9868

FLIP DUST COVER

PN: P206

SPUR WASHER

PN: S2302A

SPUR WASHER

PN: S2302B

ANCHOR WASHER

PN: S6951

FLAT WASHER

PN: S2313

SPEED-CLIP

PN: HS6397

FINGER PULL VERTICAL

PN: P9446A

FINGER PULL HORIZONTAL

PN: P9446B

METAL FINGER PULL

PN: FP333

DUST COVER

PN: P9748

ANCHOR PLATE

PN: S2315A

WASHER

PN: SS7162
