Handles
Part Number | Finish | Material | Size | Locking Points | Mounting | Rotation | Locking | Download |
---|---|---|---|---|---|---|---|---|

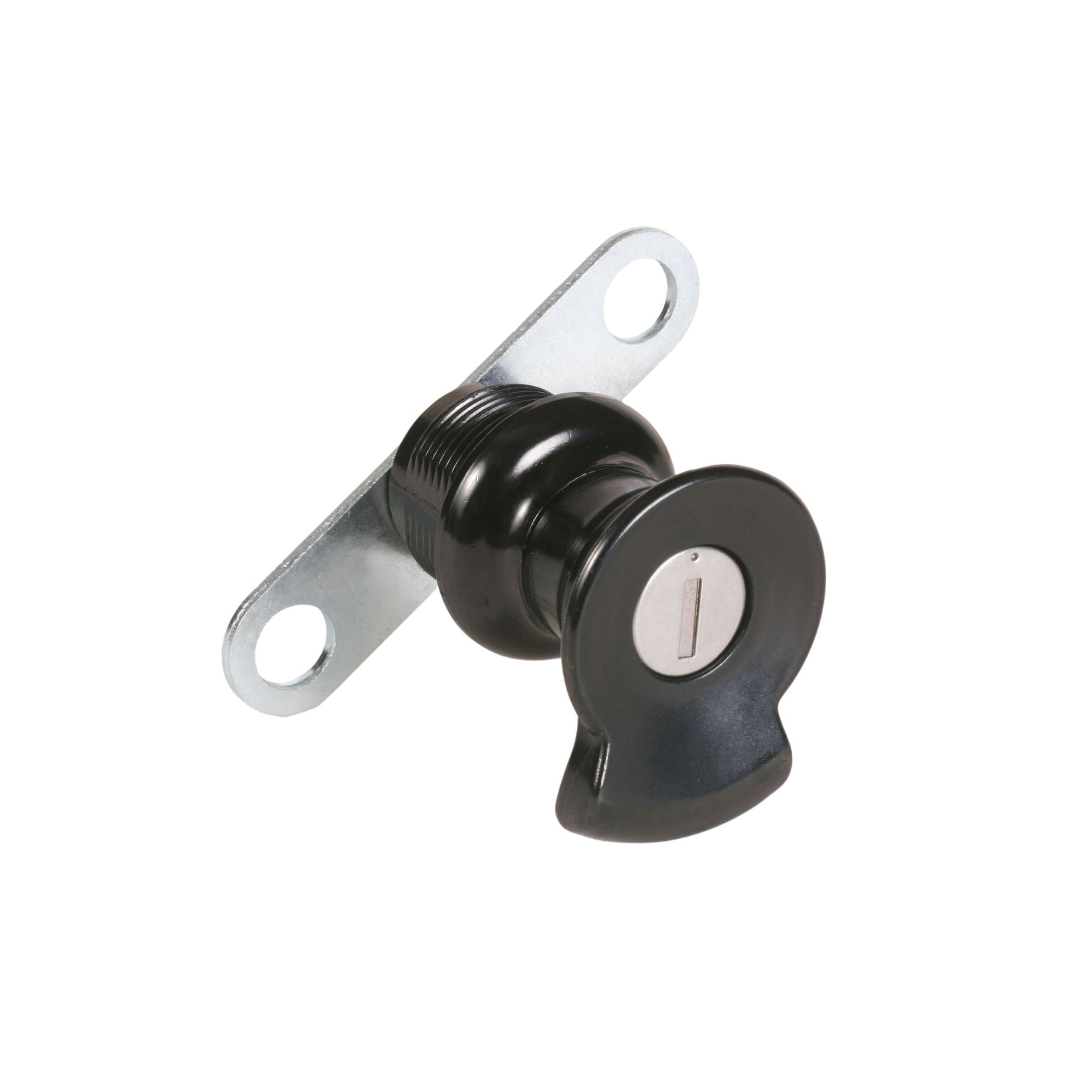

DC4020 | Black | Alloy | .80"L x 1.48"W x 1.92"H | One | Hex nut | Left | Key | Spec sheet |
Overview
![](https://www.eberhard.com/assets/uploads/tinymice/DC4020_diagram.jpg)
Cam Rotation & Installation
![](https://www.eberhard.com/assets/uploads/tinymice/DC4020_rotation.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/DC4020_installation.jpg)
Cam Types
![](https://www.eberhard.com/assets/uploads/tinymice/DC4020_camtype1.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/DC4020_camtype2.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/DC4020_camtype3.jpg)
Part Number | Finish | Material | Size | Locking Points | Mounting | Rotation | Locking | Download |
---|---|---|---|---|---|---|---|---|
DC4020 | Black | Alloy | .80"L x 1.48"W x 1.92"H | One | Hex nut | Left | Key | Spec sheet |
