Handles
Part Number | Finish | Material | Size | Locking Points | Mounting | Rotation | Locking | Download |
---|---|---|---|---|---|---|---|---|

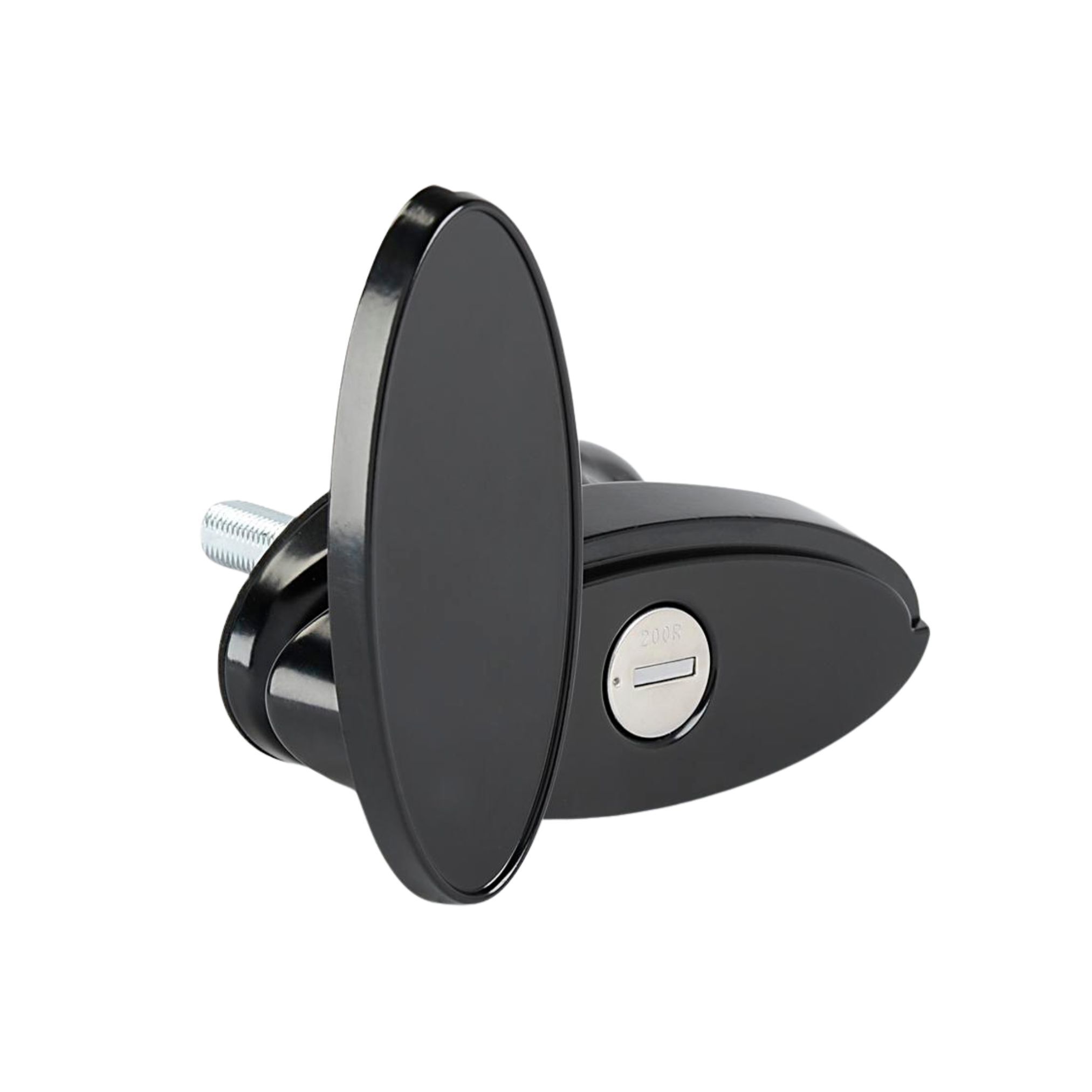

DC4060 | Black | Alloy | 1.88"L x 3.53"W x 1.60"H | One, Two, and Three | Screw | Left | Key | Spec sheet |
Overview
![](https://www.eberhard.com/assets/uploads/tinymice/DC4060_diagram.jpg)
Cam Rotation & Installation
![](https://www.eberhard.com/assets/uploads/tinymice/DC4060_rotation.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/DC4060_installation.jpg)
Cam Types
![](https://www.eberhard.com/assets/uploads/tinymice/DC4060_camtype.jpg)
Part Number | Finish | Material | Size | Locking Points | Mounting | Rotation | Locking | Download |
---|---|---|---|---|---|---|---|---|
DC4060 | Black | Alloy | 1.88"L x 3.53"W x 1.60"H | One, Two, and Three | Screw | Left | Key | Spec sheet |
