Handles
Additional Product Information
Inches | part No | Rotation | Milimeters | Finish | Spring Return | Key Code | Market | Water Resistance | Tumbler Count | Length |
---|---|---|---|---|---|---|---|---|---|---|
2.430 | DXPH105 | 90° Key Turn & Knob Turn | 61.72 | Bright Chrome US26 | N/A | Contact Us for Details | Vending, Kisoks | No | Various | 2.43 |
Specifications
- Pop-Out handle used in vending applications. Engineered to be used with standard pop-out cylinders.
- Accepts all NAMA vending cylinders.
- 90 degree turn handle.
- DXPH105 Series
Material and Finish
- Housing: Zinc Alloy.
- Finish: Bright Chrome US26 (Standard).
- Satin Nickel US15, Black E-Coat or Black powder.

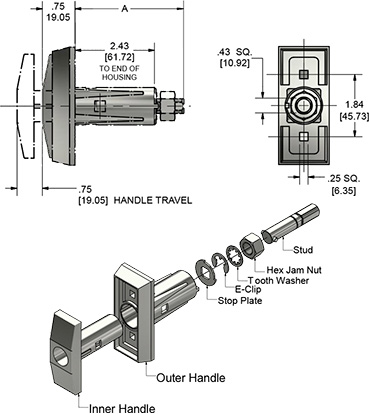

Overview
![](https://www.eberhard.com/assets/uploads/tinymice/DXPH105_diagram.jpg)

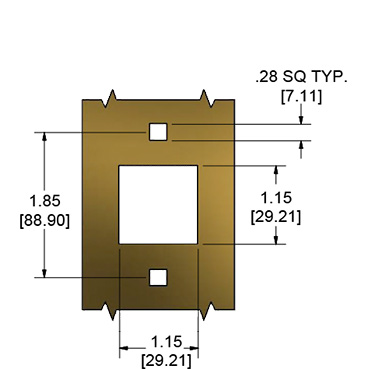

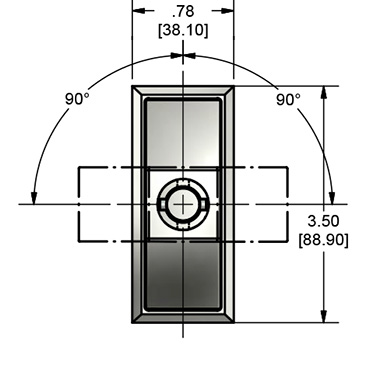

Cam Rotation & Installation
![](https://www.eberhard.com/assets/uploads/tinymice/DXPH105_rotation.jpg)
![](https://www.eberhard.com/assets/uploads/tinymice/DXPH105_installation.jpg)
