Cam Locks

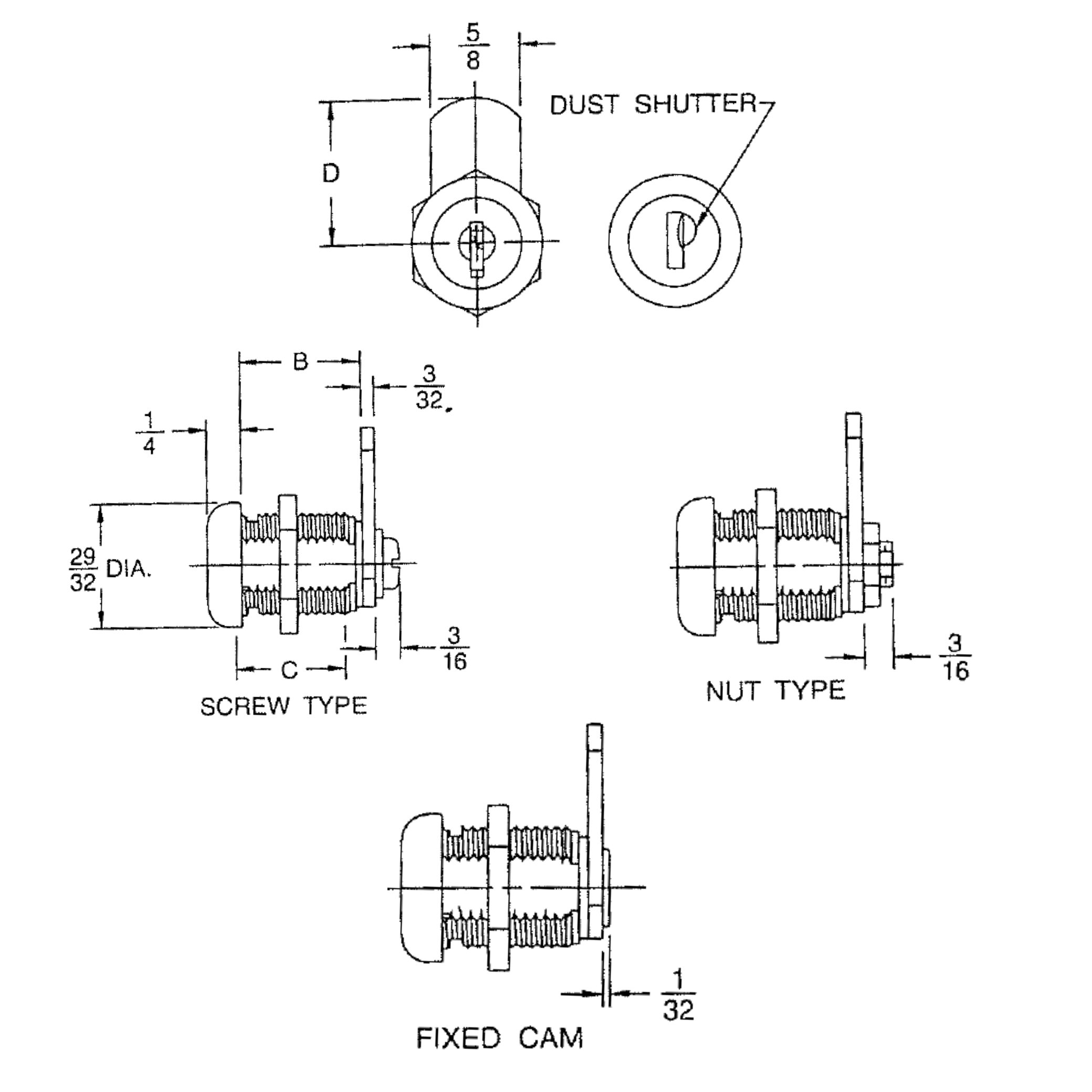

| Part Number | Material | Finish | Cam Style | Dimension B | Dimension C | Dust Shutter | Download |
|---|---|---|---|---|---|---|---|
| C608S | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 5/8 | 1/2 | Y | Spec sheet |
| C608M | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 7/8 | 3/4 | Y | Spec sheet |
| C608L | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 1-1/8 | 1 | Y | Spec sheet |
| C608XL | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 1-3/8 | 1-1/4 | Y | Spec sheet |
| C608XXL | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 1-5/8 | 1-1/2 | Y | Spec sheet |
| C608XXXXL | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 2-1/8 | 1-15/16 | Y | Spec sheet |
| C607XS | Zinc die cast with stainless steel face | Zinc | Flat, fixed type | 7/16 | 1/4 | Y | Spec sheet |
| C607S | Zinc die cast with stainless steel face | Zinc | Flat, fixed type | 5/8 | 1/2 | Y | Spec sheet |
| C607M | Zinc die cast with stainless steel face | Zinc | Flat, fixed type | 7/8 | 3/4 | Y | Spec sheet |
| C607L | Zinc die cast with stainless steel face | Zinc | Flat, fixed type | 1-1/8 | 1 | Y | Spec sheet |
| C610S | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 5/8 | 1/2 | N | Spec sheet |
| C610M | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 7/8 | 3/4 | N | Spec sheet |
| C610L | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 1-1/8 | 1 | N | Spec sheet |
| C610XL | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 1-3/8 | 1-1/4 | N | Spec sheet |
| C610XXL | Zinc die cast with stainless steel face | Zinc | Flat, screw type | 1-5/8 | 1-1/2 | N | Spec sheet |
| C611XS | Zinc die cast with stainless steel face | Zinc | Flat, nut type | 7/16 | 1/4 | N | Spec sheet |
| C611S | Zinc die cast with stainless steel face | Zinc | Flat, nut type | 5/8 | 1/2 | N | Spec sheet |
| C615XS | Zinc die cast with stainless steel face | Zinc | Flat, fixed type | 7/16 | 1/4 | N | Spec sheet |
| C615S | Zinc die cast with stainless steel face | Zinc | Flat, fixed type | 5/8 | 1/2 | N | Spec sheet |
