E905V1S

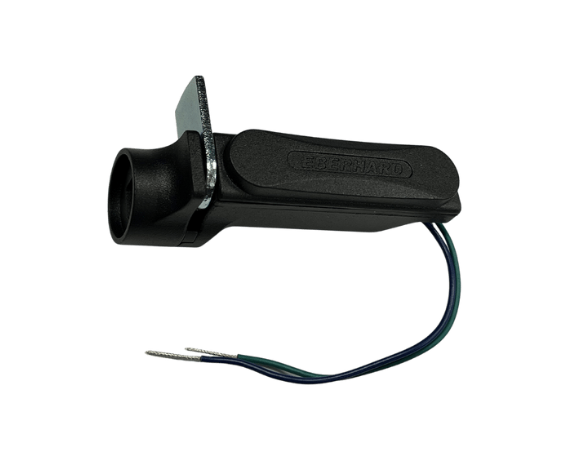

EM Electronic Camlock Adapter

Make any standard cam lock electronic with our electronic cam lock adapter.
Compatible with the i-Lock Bluetooth system.
Power-efficient design draws less than 5 amps.
Easy, single screw install with mechanical key override.

Power Specifications

Voltage: 12V nominal, 9-16V range.
Stall Current: <500mA>
Full Load Current: <240mA>

Actuation Specifications

Operation: FWD polarity 300mS, REV polarity 300mS.

Material Specifications

Motor Housing: Zinc diecast, black electro-coated.
Cam: Zinc plated steel.

Environmental Specifications

Operating Temperature Range: -20 degrees Celsius to 70 degrees Celsius.
Humidity: 5-95% RH.
IP Rating: IP66.
Endurance (Full Cycles): >/= 90,000 times.

Options

Bare wire, 20 gauge.

Certifications

RoHS.

Additional Product Information

Download 2D Drawing

Download 3D Model

part No	Function	Finish	Market	Application Rating
E905V1S	Cam locks; storage lockers, safes, medical carts	Die cast housing w. zinc plated steel cam	Medical, TORA, Industrial, Outdoor	ROHS compliant (Bluetooth Version)
