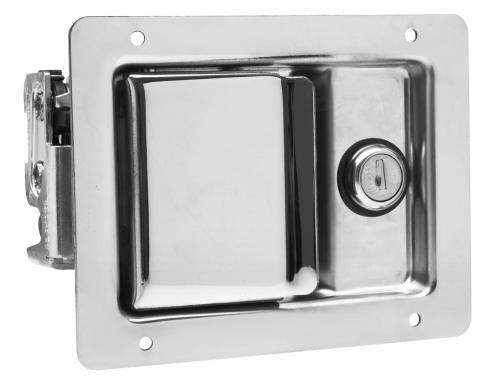

7901/7940 Series

Paddle Rotary Latch

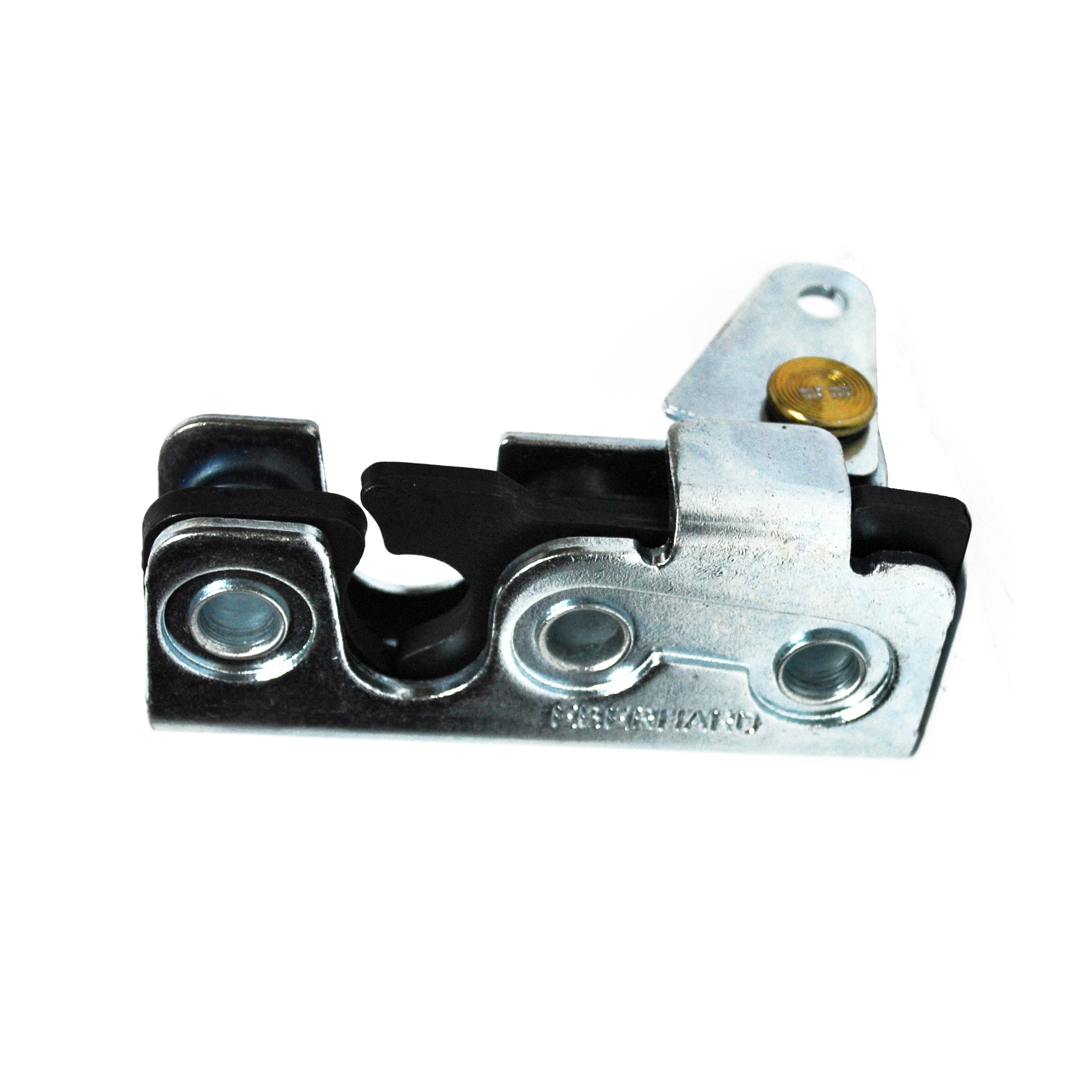

Stainless steel paddle handle combined with our 240 series rotary latch that provides vertical and horizontal latching capabilities.
Water resistant paddle design limits water penetration into the compartment area. Free-wheeling paddle handle option allows for handle to be moved when in locked position to reduce damaging latch through forced entry.

  • Dual stage latching
  • Key-locking
  • 4 mounting holes
  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed Stages Free-Wheeling Handle Mounting Striker Size Download
3-7901-SS-10 Polished Stainless steel 4.25"L x 5.50"W x 2.01"H N/A Dual No Holes .38" 2D, 3D
3-7940-SS-10 Polished Stainless steel 4.25"L x 5.50"W x 2.01"H N/A Dual Yes Holes .38" 2D
