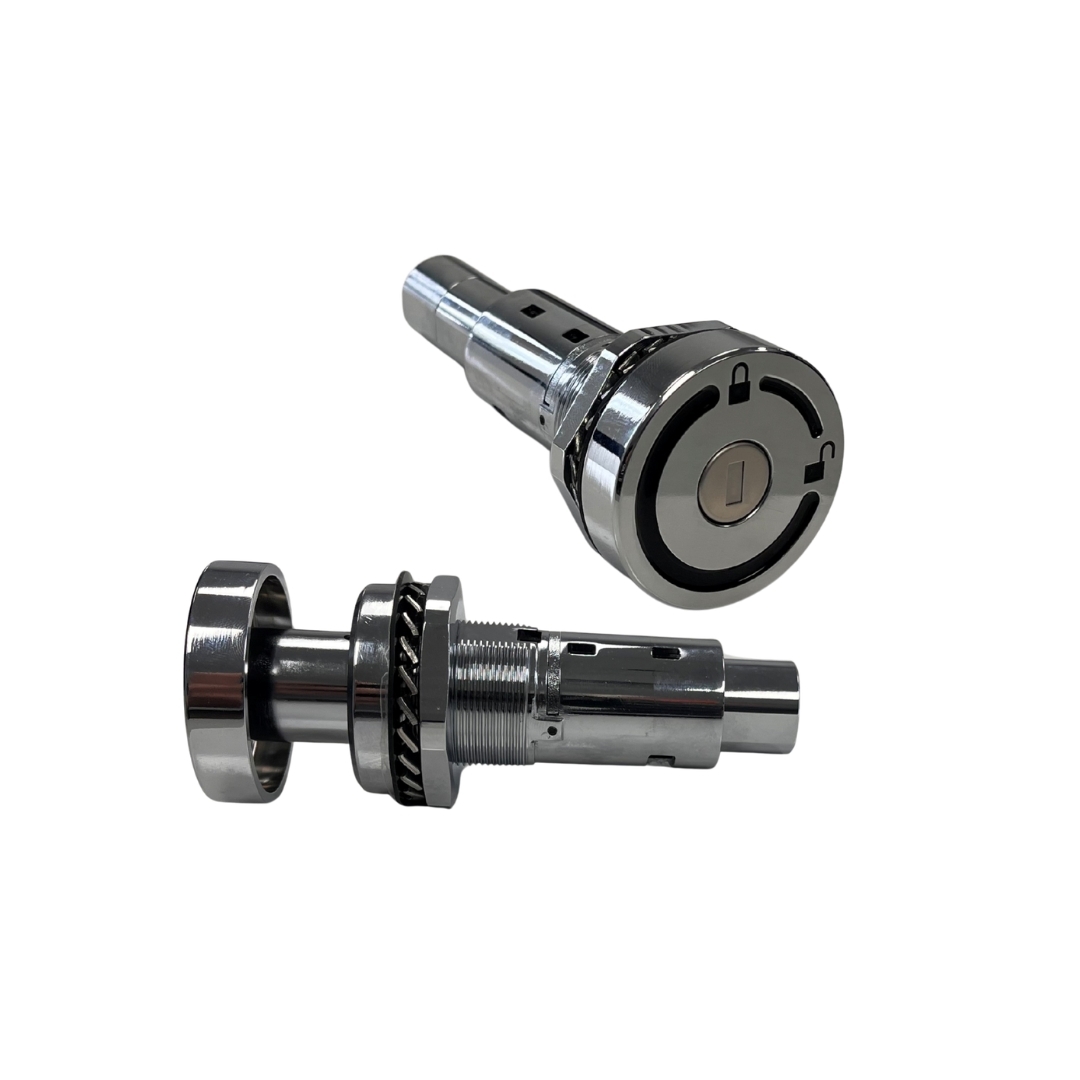

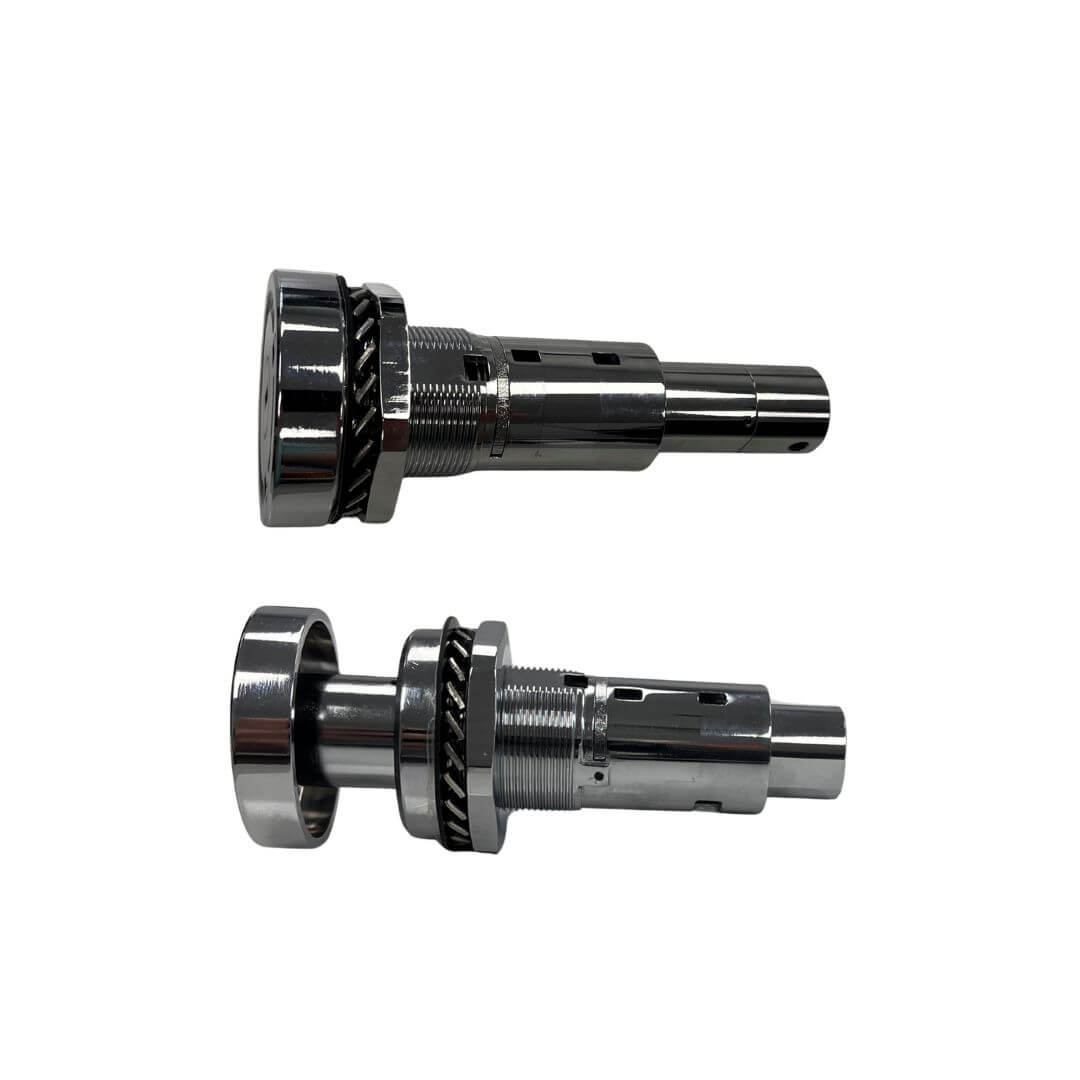

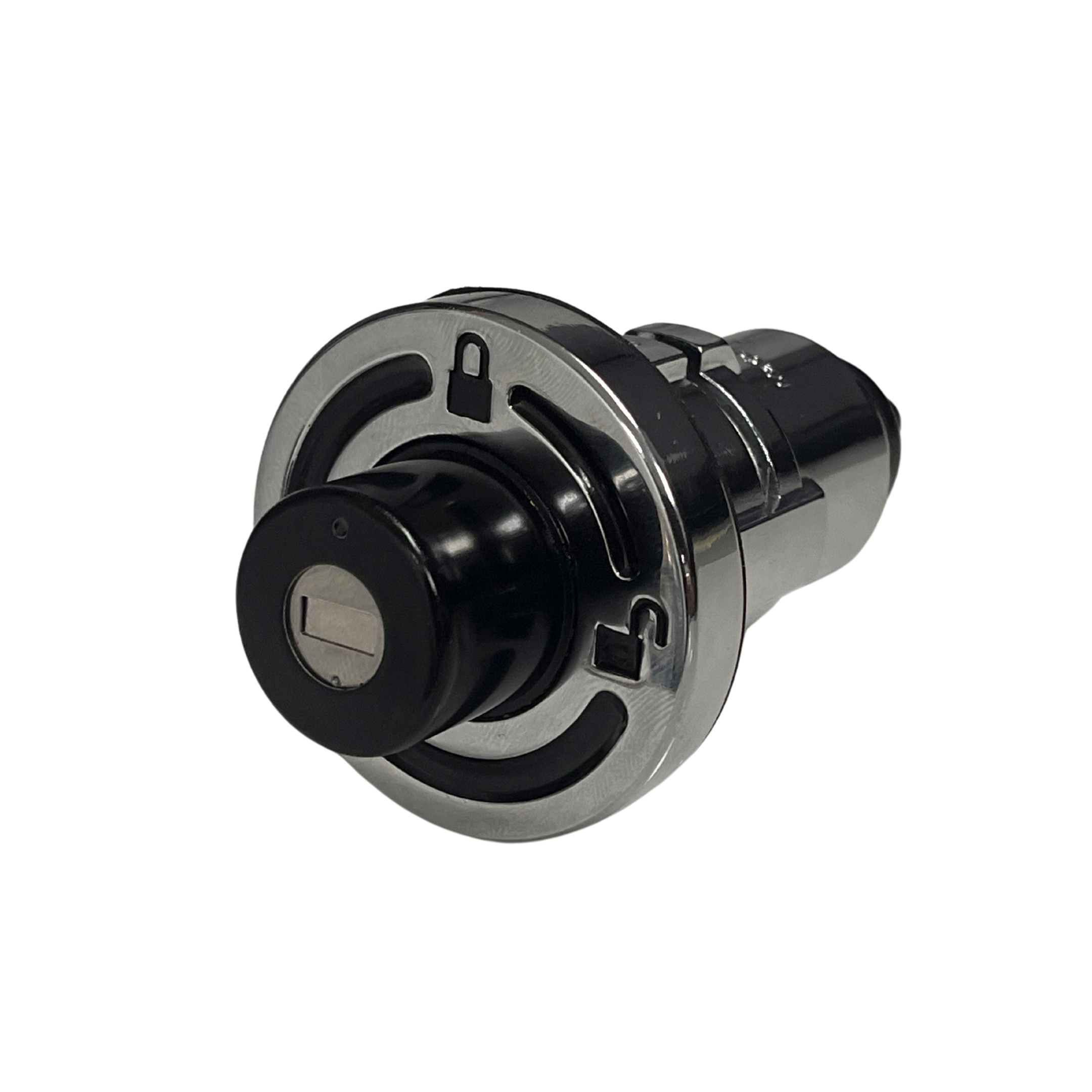

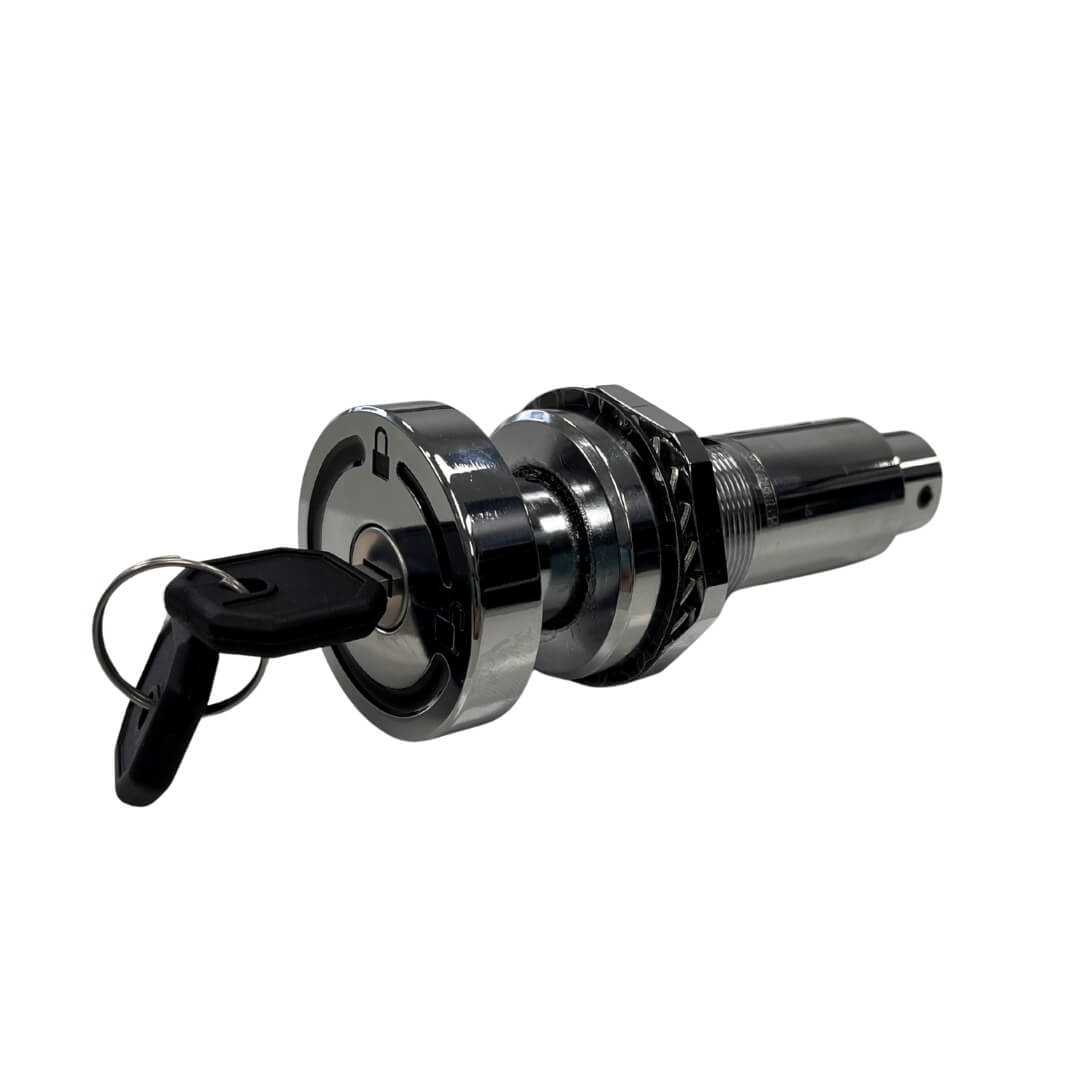

DXPB Series Palm-Style Push Button Lock

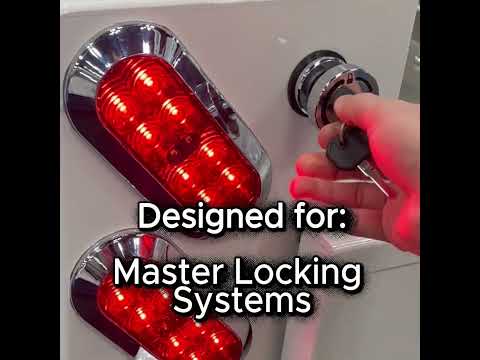

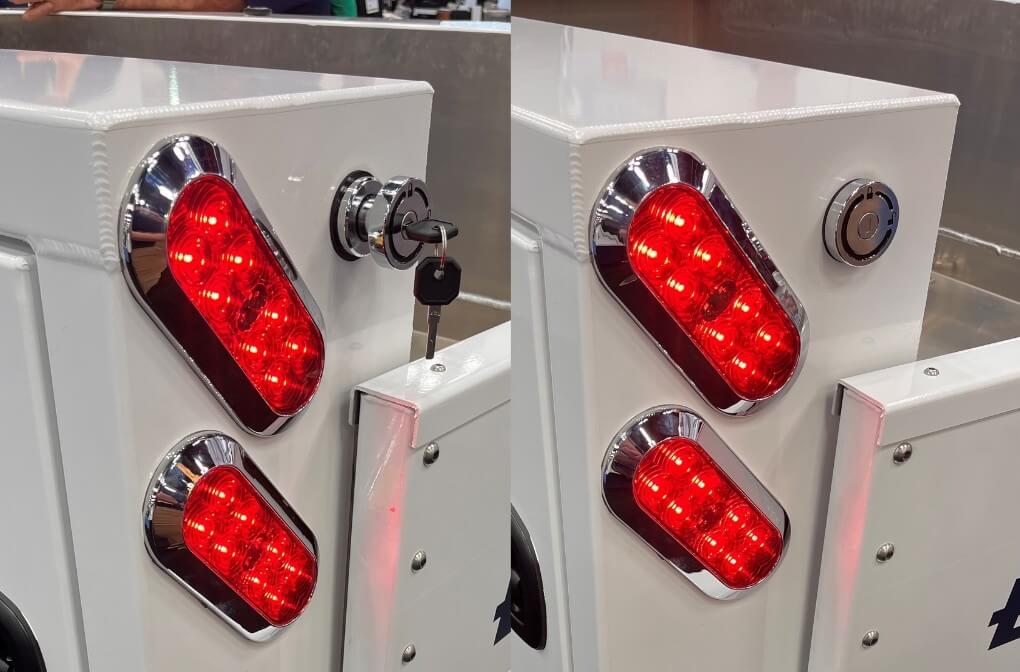

Palm-style push button lock designed for truck Master Locking systems (DXPB280KD) and truck Toolbox systems (DXPB250KD-03).

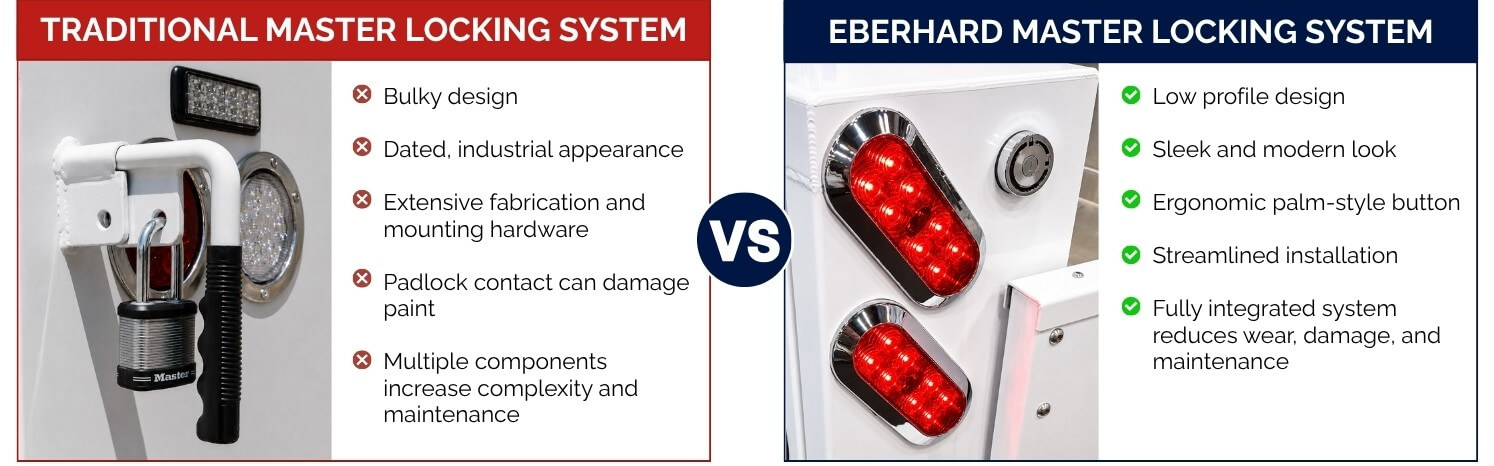

- Key-locking, palm-style head
- 1" stroke length
- Low profile mounted design
- Sleek and modern look
- Ergonomic palm-style button
- Streamlined installation with minimal fabrication required
- Fully integrated system reduces wear, damage, and maintenance
Product Specifications
| Part Number | Application | Finish | Material | Sizes | Locking | Mounting | Stroke Length | Water Resistant | Download |
|---|---|---|---|---|---|---|---|---|---|
| DXPB280KD-03 | Master Locking System | Chrome | Zinc Die-Cast | 4.34"L x 2.00"W x 2.00"H | Key | Hex Nut | 1" | Yes | |
| DXPB250KD-03 | Truck Toolbox System | Chrome | Zinc Die-Cast | 5.09"L x 2.00"W x 2.00"H | Key | Hex Nut | 1" | Yes |
