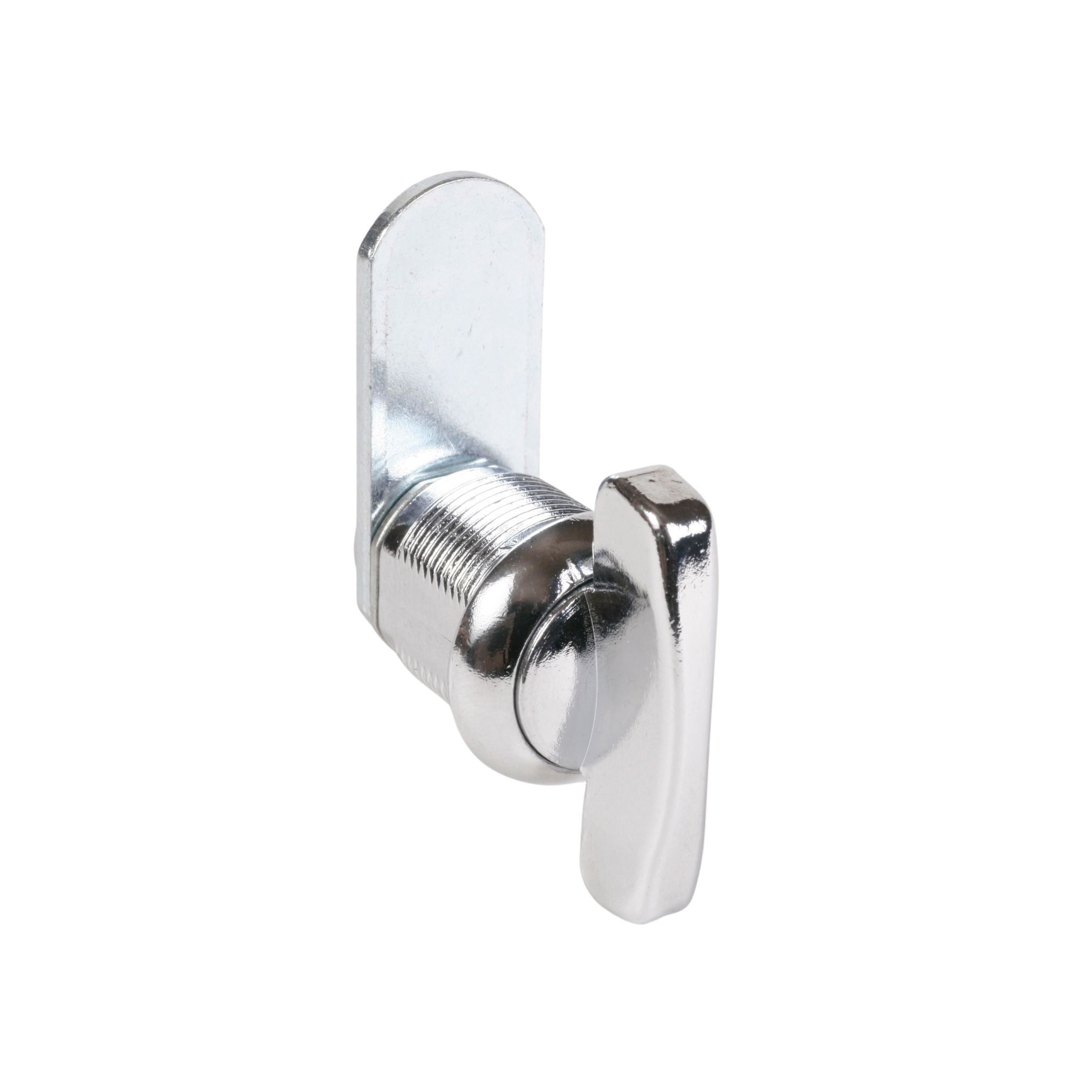

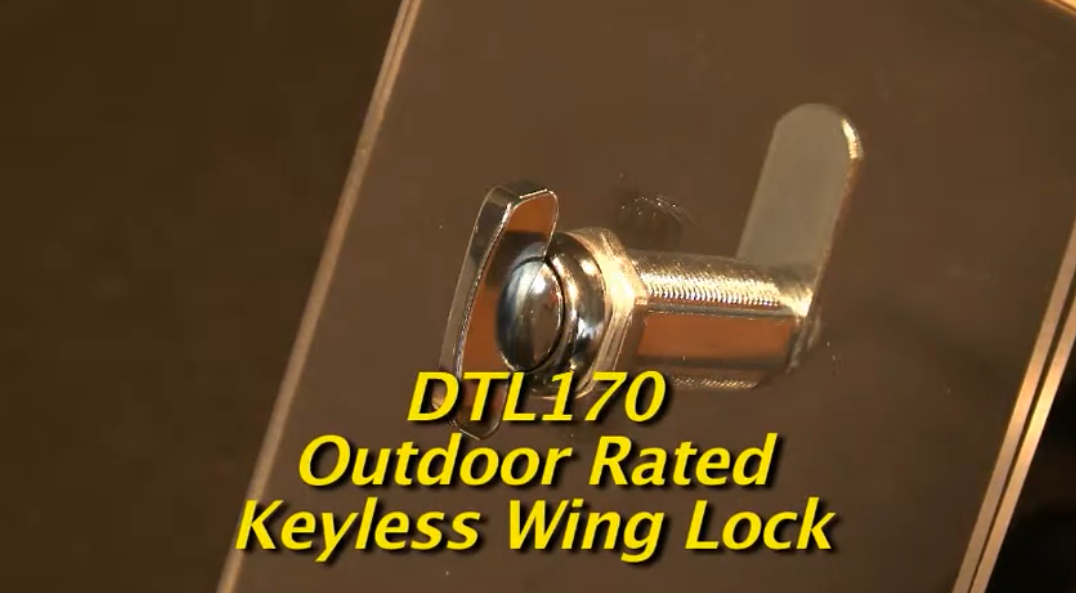

Quarter Turns
| Part Number | Finish | Material | Water Resistant | Rotation | Cam Style | Max Panel Thickness | Download |
|---|---|---|---|---|---|---|---|
| DTL170S | Chrome | Zinc alloy | Yes | 90 degree | Straight | 5/8" | Spec sheet |
| DTL170M | Chrome | Zinc alloy | Yes | 90 degree | Straight | 7/8" | Spec sheet |
| DTL170L | Chrome | Zinc alloy | Yes | 90 degree | Straight | 1-1/8" | Spec sheet |
| DTL170XXL | Chrome | Zinc alloy | Yes | 90 degree | Straight | 1-5/8" | Spec sheet |
| DTL170XXXXL | Chrome | Zinc alloy | Yes | 90 degree | Straight | 2-1/8" | Spec sheet |
Accessories + Replacement PartsOverview
Cam Rotation & Installation
Cam Types
Accessories/Replacement Parts
Cam Screw 1/4-28
PN: S23032G
Nut Lock
PN: S9003A
Barrel Nut M19
PN: D9868
Spur Washer
PN: S2302A
Spur Washer
PN: S2302B
Anchor Washer
PN: S6951
Flat Washer
PN: S2313
Speed-Clip
PN: HS6397
Metal Finger Pull
PN: FP333
