Rotary Latches and Strikers

hgfhgfhfgh

1-240 Series

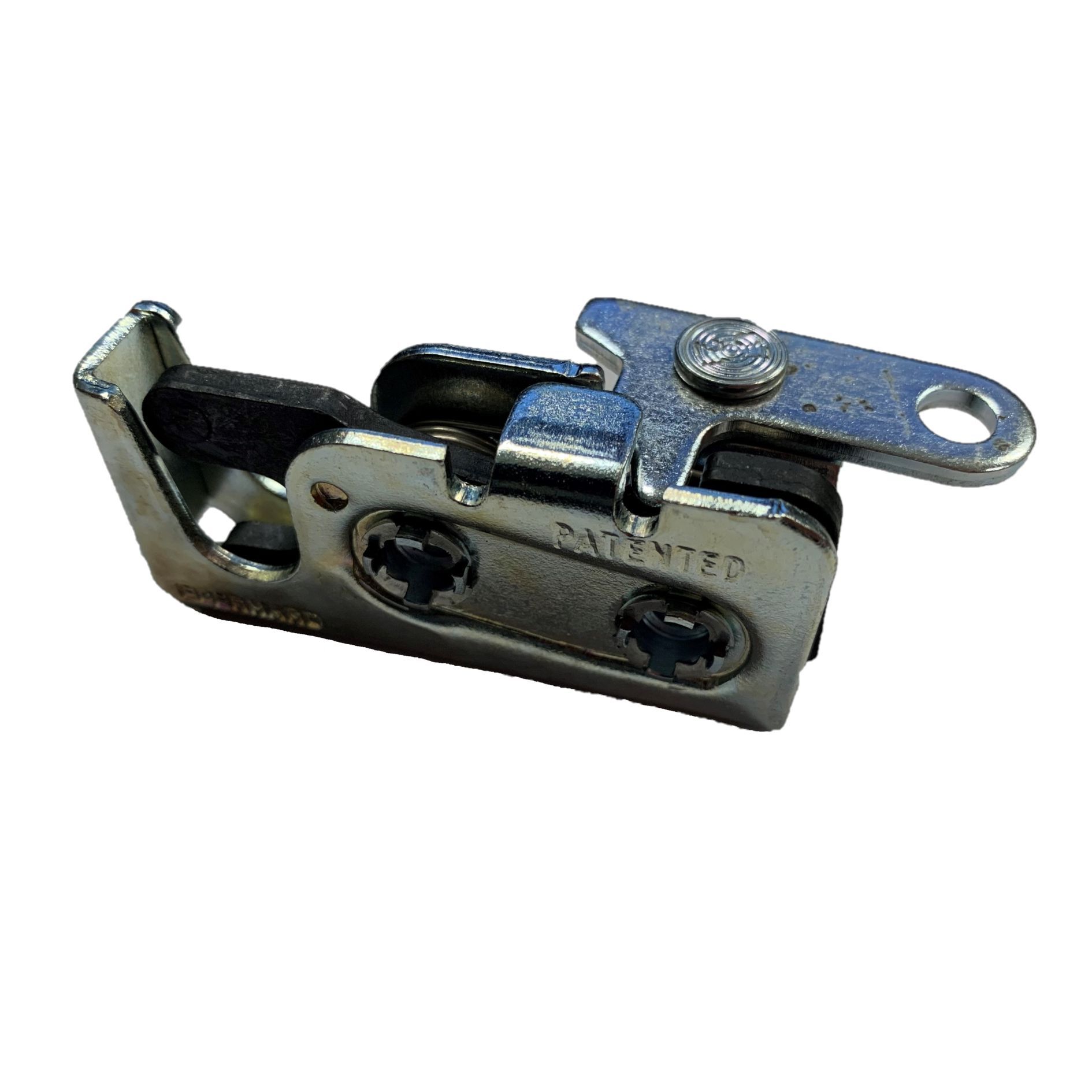

Mini Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Single, horizontal with bend actuator for remote operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Striker Size Download
1-240-L-54 Zinc Steel 2.50"L x .58"W x 1.13"H Left No Dual 1/4" x 20 threaded holes .38" 2D, 3D
1-240-R-54 Zinc Steel 2.50"L x .58"W x 1.13"H Right No Dual 1/4" x 20 threaded holes .38" 2D, 3D
