Rotary Latches and Strikers

hgfhgfhfgh

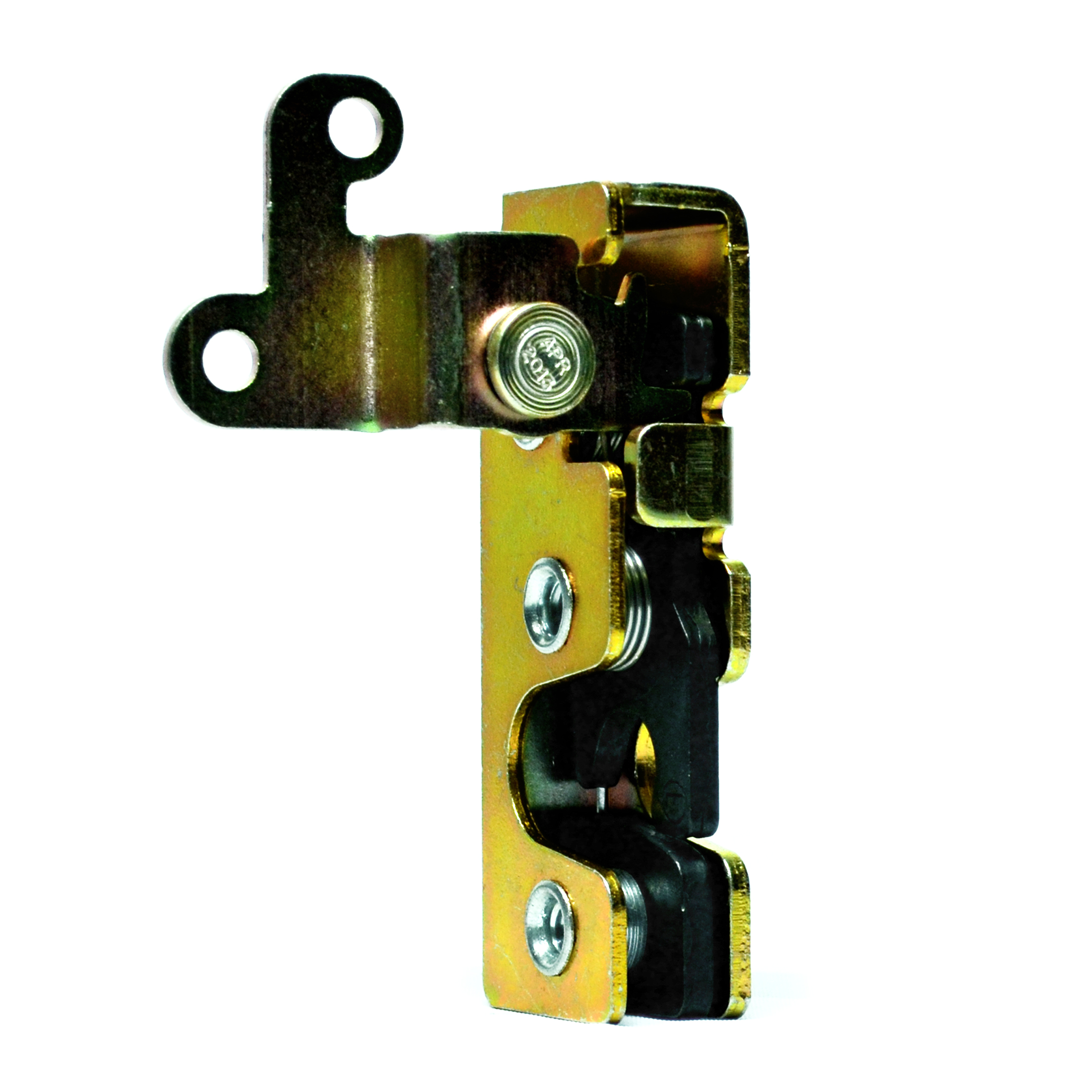

2T-475 Series
Large Rotary Latch

Right or left hand
Dual stage latching
Low profile design
Dual, offset actuator for 2 remote operations
Rated to a max load of 750lbs
To be used with a .50" diameter striker pin
Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Striker Size	Download
2T-475-L-64	Zinc	Steel	3.88"L x .79"W x 1.25"H	Left	Yes	Dual	1/4" x 20 threaded holes	.50"	2D, 3D
2T-475-R-64	Zinc	Steel	3.88"L x .79"W x 1.25"H	Hand	Yes	Dual	1/4" x 20 threaded holes	.50"	2D, 3D
