Rotary Latches and Strikers

Slam latch image

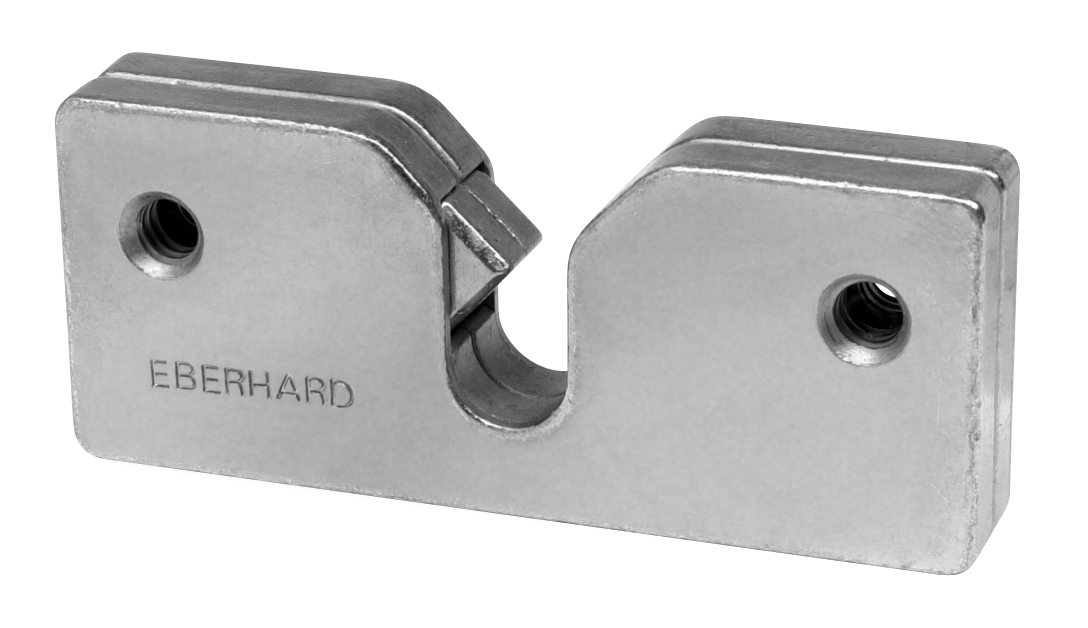

563-27 Slam Latch

  • Right or left hand

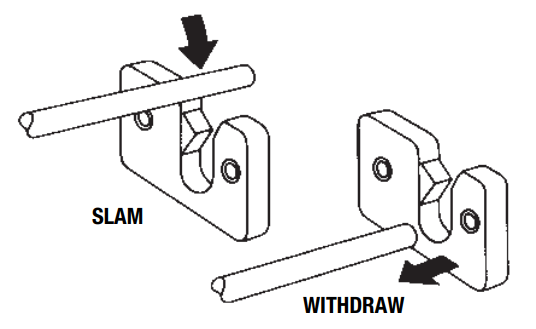

  • Designed to be used with a 0.375” diameter rod (slams into the latch to latch, slides out the side of the latch to unlatch)

  • Single stage latching

  • (2) 1/4”-20 threaded mounting holes

  • Rated to a max load of 750lbs

Product Specifications

Part Number Material Finish Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Download
563-27 Steel Zinc 3.00"L x .50"W x 1.25"H No Single .38" rod 1/4"-20 threaded holes
