Rotary Latches and Strikers

product image
product image

hgfhgfhfgh

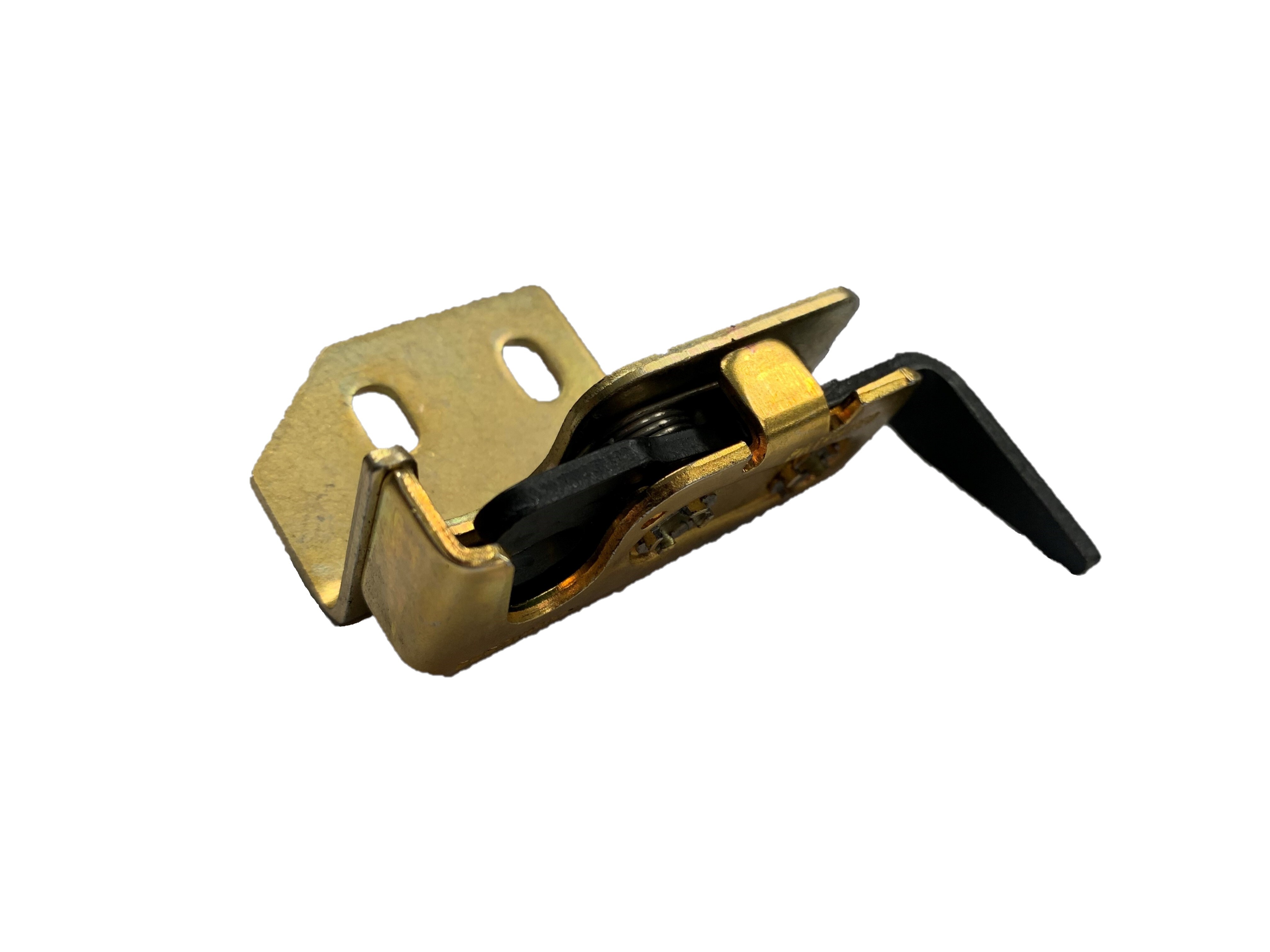

77-231 Series

Mini Rotary Latch

  • Right or left hand
  • Single stage latching
  • Integral mounting bracket
  • Metric mounting holes
  • Lever for hand actuation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Extras Striker Size Download
77-231-ML-BG Zinc Steel 2.50"L x .58"W x 1.46"H Left No Single M6 x 1 threaded holes With lever for hand actuation .38" 2D, 3D
77-231-MR-BG Zinc Steel 2.50"L x .58"W x 1.46"H Right No Single M6 x 1 threaded holes With lever for hand actuation .38" 2D, 3D
