Rotary Latches and Strikers

product image
product image

hgfhgfhfgh

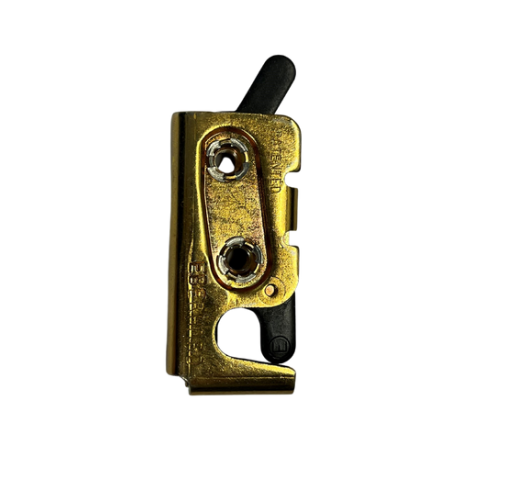

80-241-ML-BG

Mini Rotary Latch

  • Left hand
  • Single stage latching
  • Single, vertical lever arm actuator for hand operation
  • Metric threaded mounting holes
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Extras Striker Size Download
80-241-ML-BG Zinc Steel 2.50"L x .58"W x 1.13"H Left No Single M6 x 1 threaded holes With lever for hand actuation .38" 2D, 3D
