Rotary Latches and Strikers

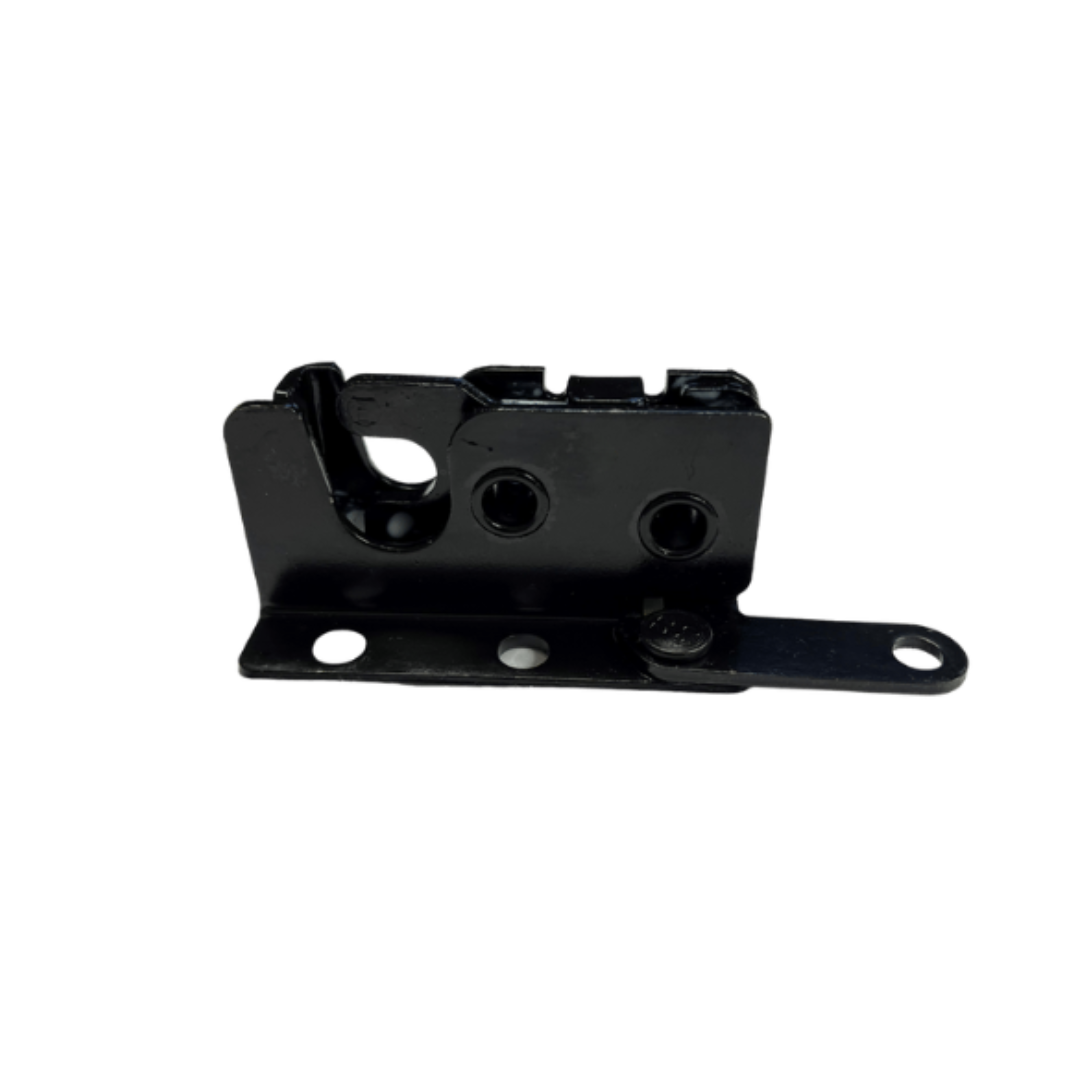

87-230-L-BG Mini Rotary Latch

  • Left hand

  • Dual stage latching

  • Integral mounting bracket

  • Single, vertical in-line actuator

  • Rated to a max load of 750lbs

  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Handed Material Finish Sizes FMVSS 206 Rated Stages Extras Striker Sizes Mounting Download
87-230-L-BG Left Steel Zinc 2.75"L x 1.08"W x 1.37"H No Dual With mounting bracket .38" 1/4" x 20 threaded holes and bracket
