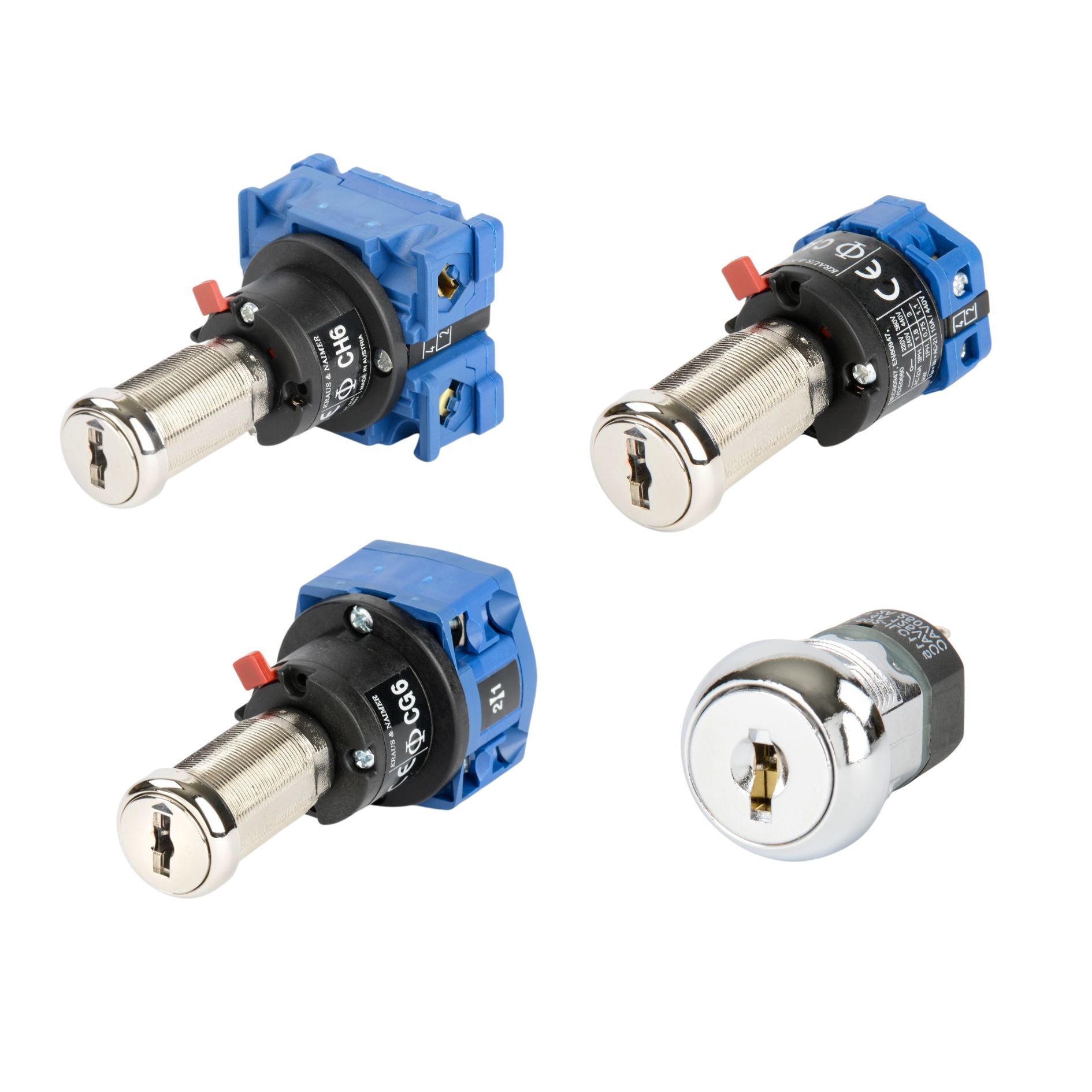

V3171 Series
Indoor Key Switch Locks

Screw type terminals
Custom wire harnessing available
V3171CH6, V3171CG6, and V3171CA4 offer 4 disk tumblers and 50 key codes
Custom logo or company name available on plastic key bow
Mounting nut standard. Speed clip is available. Designed for applications from .72" to .11"

Part Number	Ampage	Length	Download

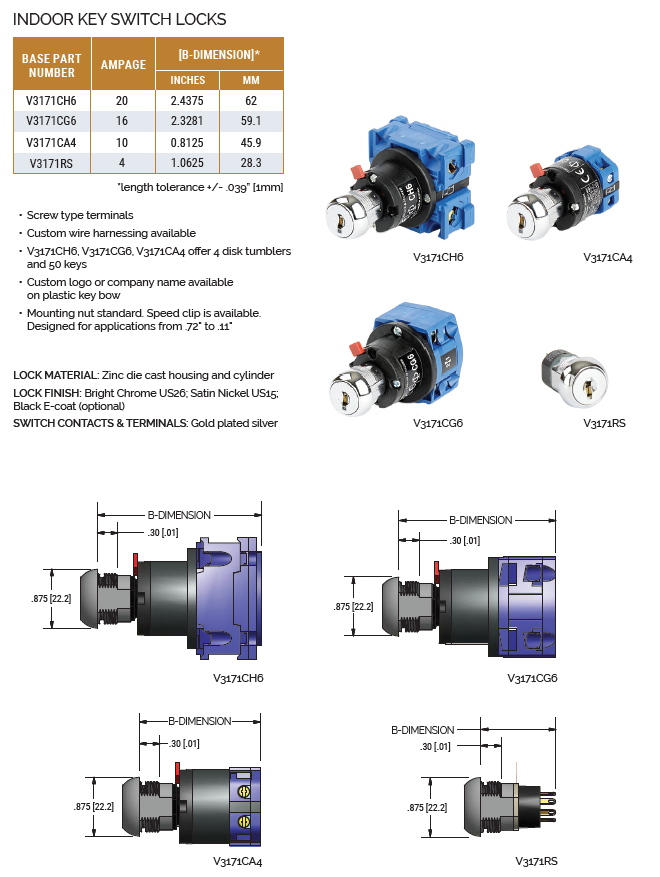

V3171CH6	20	2.4375"	Spec sheet

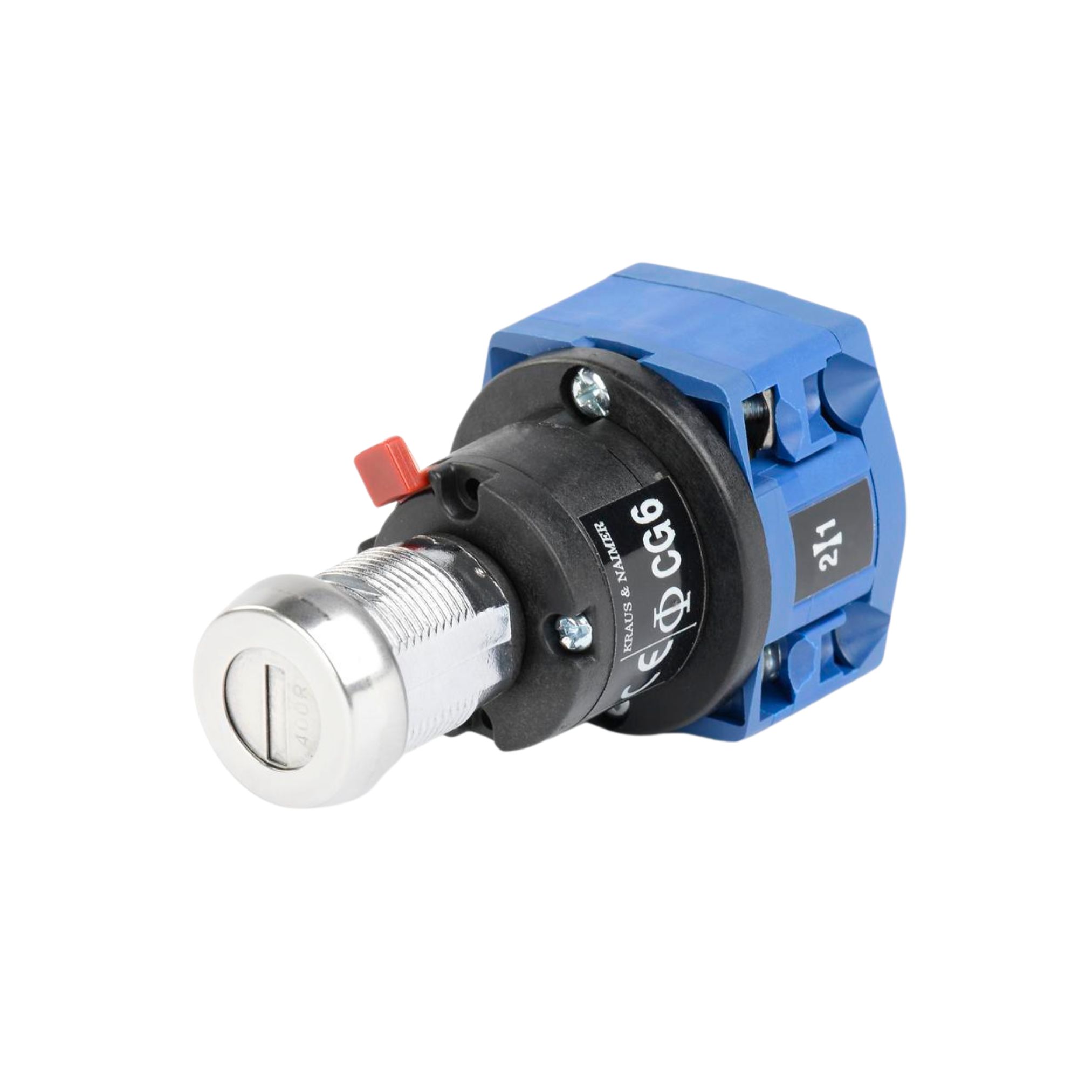

V3171CG6	16	2.3281"	Spec sheet
V3171CA4	10	.8125"	Spec sheet

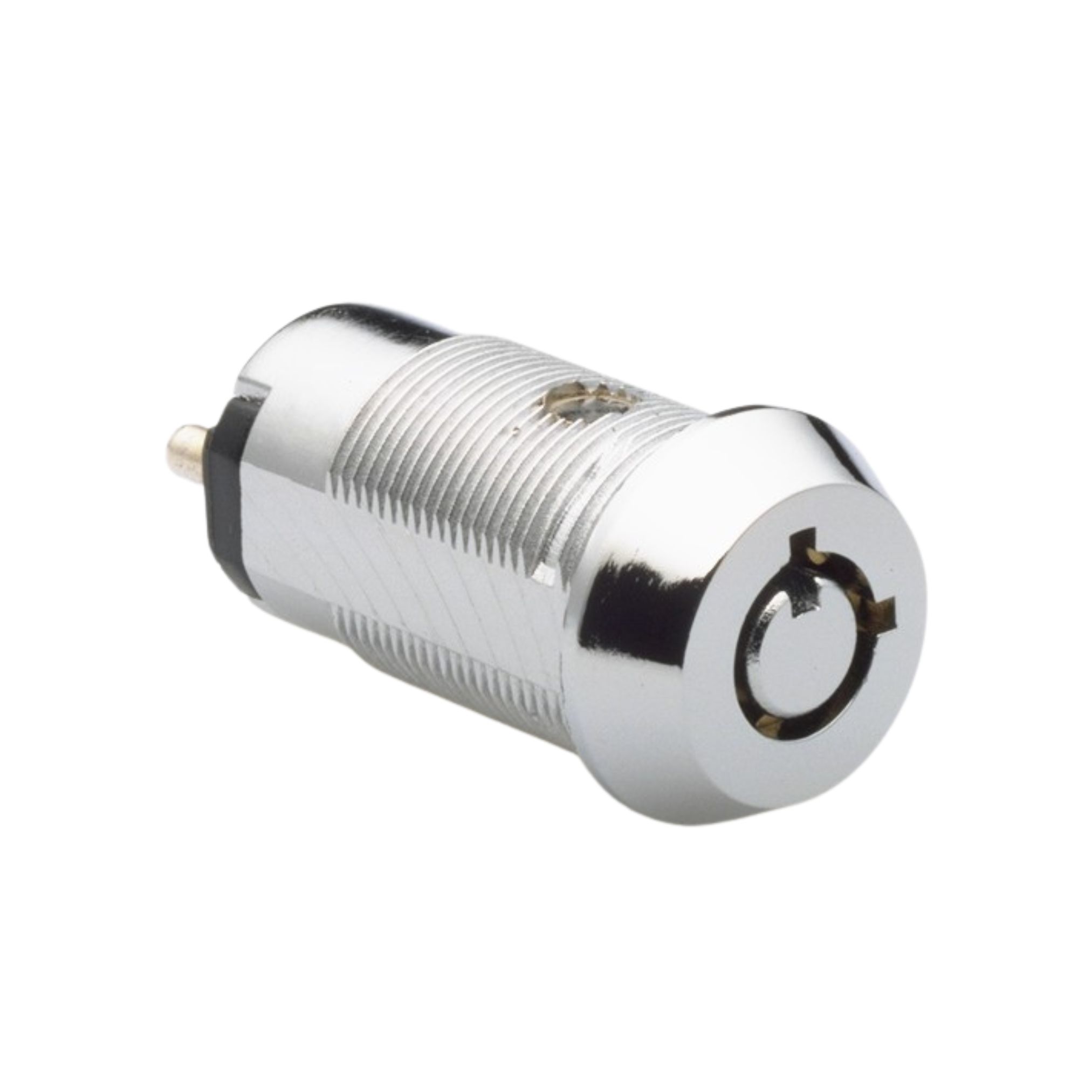

V3171RS	4	1.0625"	Spec sheet

Accessories + Replacement Parts

Accessories/Replacement Parts

RUBBER GASKET

PN: R7163

GASKET

PN: 9741

NUT LOCK

PN: S9003A

BARREL NUT M19

PN: D9868

FLIP DUST COVER

PN: P206

SPUR WASHER

PN: S2302A

SPUR WASHER

PN: S2302B

ANCHOR WASHER

PN: S6951

FLAT WASHER

PN: S2313

SPEED-CLIP

PN: HS6397

FINGER PULL VERTICAL

PN: P9446A

FINGER PULL HORIZONTAL

PN: P9446B

METAL FINGER PULL

PN: FP333

DUST COVER

PN: P9748

ANCHOR PLATE

PN: S2315A

WASHER

PN: SS7162
