Rotary Latches and Strikers

hgfhgfhfgh

1-400 Series

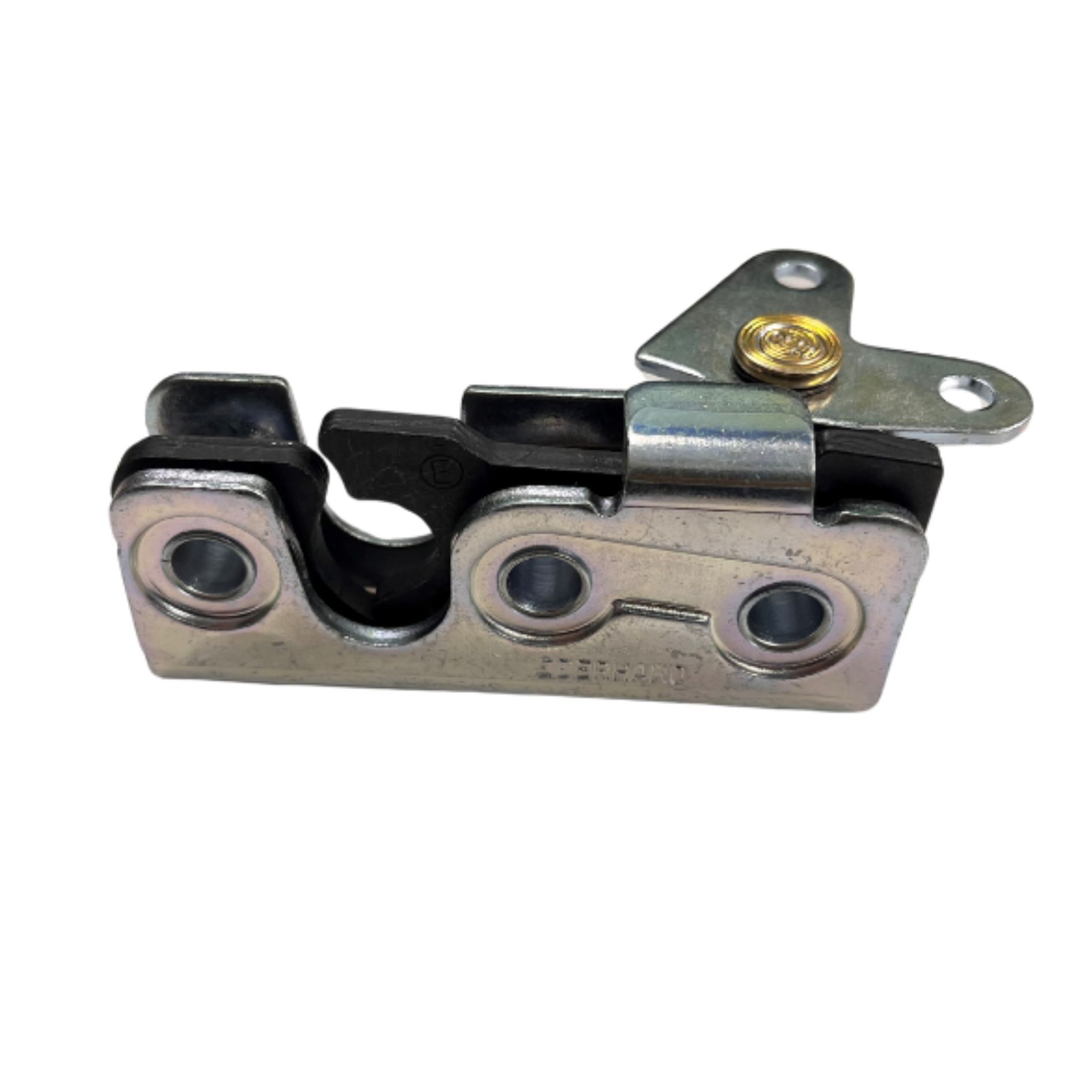

Large Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Dual actuator for two remote operation
  • Rated to a max load of 750lbs
  • To be used with a .55" diameter striker pin
  • Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Striker Size Download
1-400-L-25 Zinc Steel 3.63"L x .76"W x 1.62"H Left Yes Dual .31" thru holes .55" 2D, 3D
1-400-R-25 Zinc Steel 3.63"L x .76"W x 1.62"H Right Yes Dual .31" thru holes .55" 2D, 3D
