Rotary Latches and Strikers

hgfhgfhfgh

400 Series

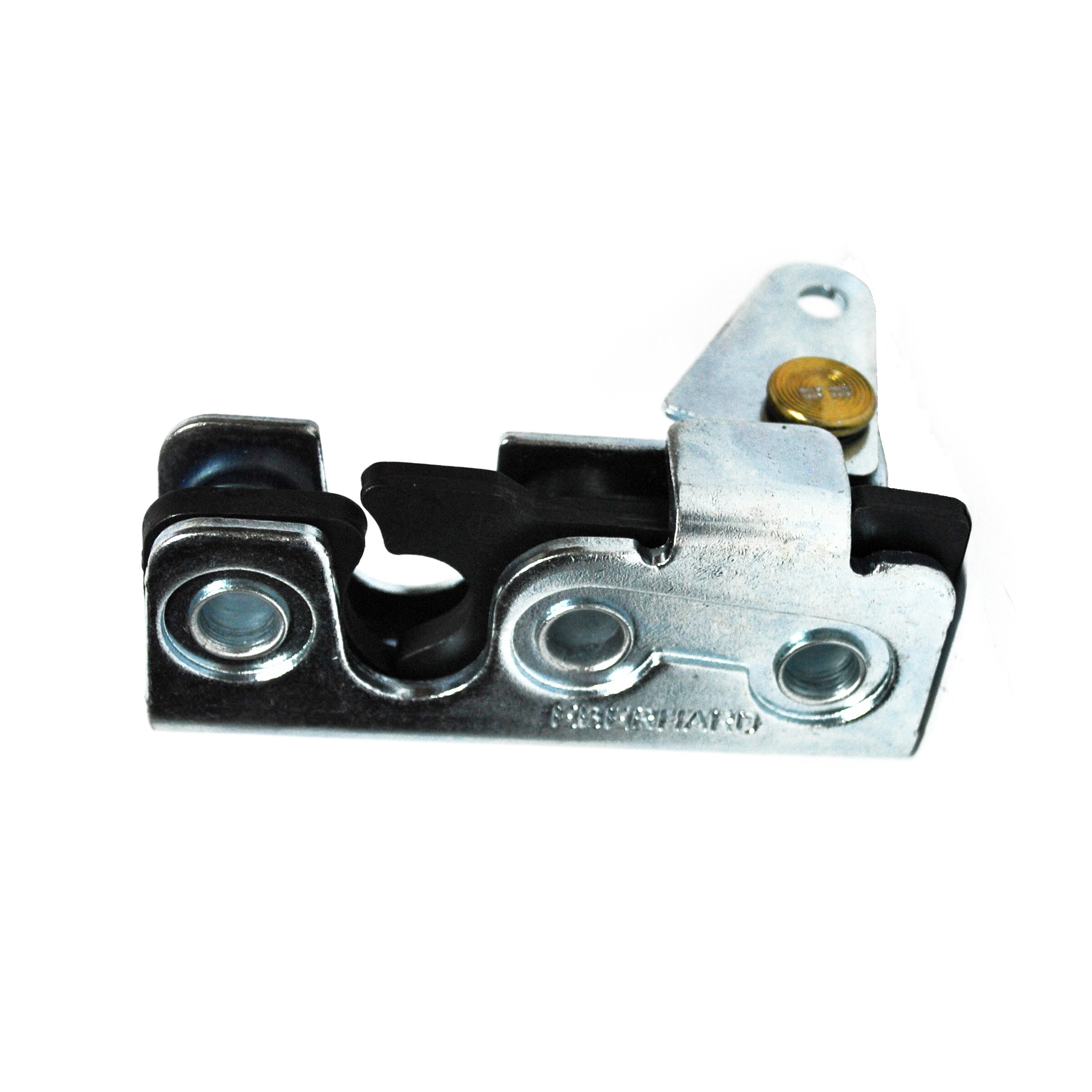

Large Rotary Latch

Right or left hand
Dual stage latching
Single, horizontal actuator for remote operation
Rated to a max load of 750lbs
To be used with a .55" diameter striker pin
Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Striker Size	Download
400-L-25	Zinc	Steel	3.63"L x .76"W x 1.62"H	Left	Yes	Dual	.31" thru holes	.55"	2D, 3D
400-R-25	Zinc	Steel	3.63"L x .76"W x 1.62"H	Right	Yes	Dual	.31" thru holes	.55"	2D, 3D
