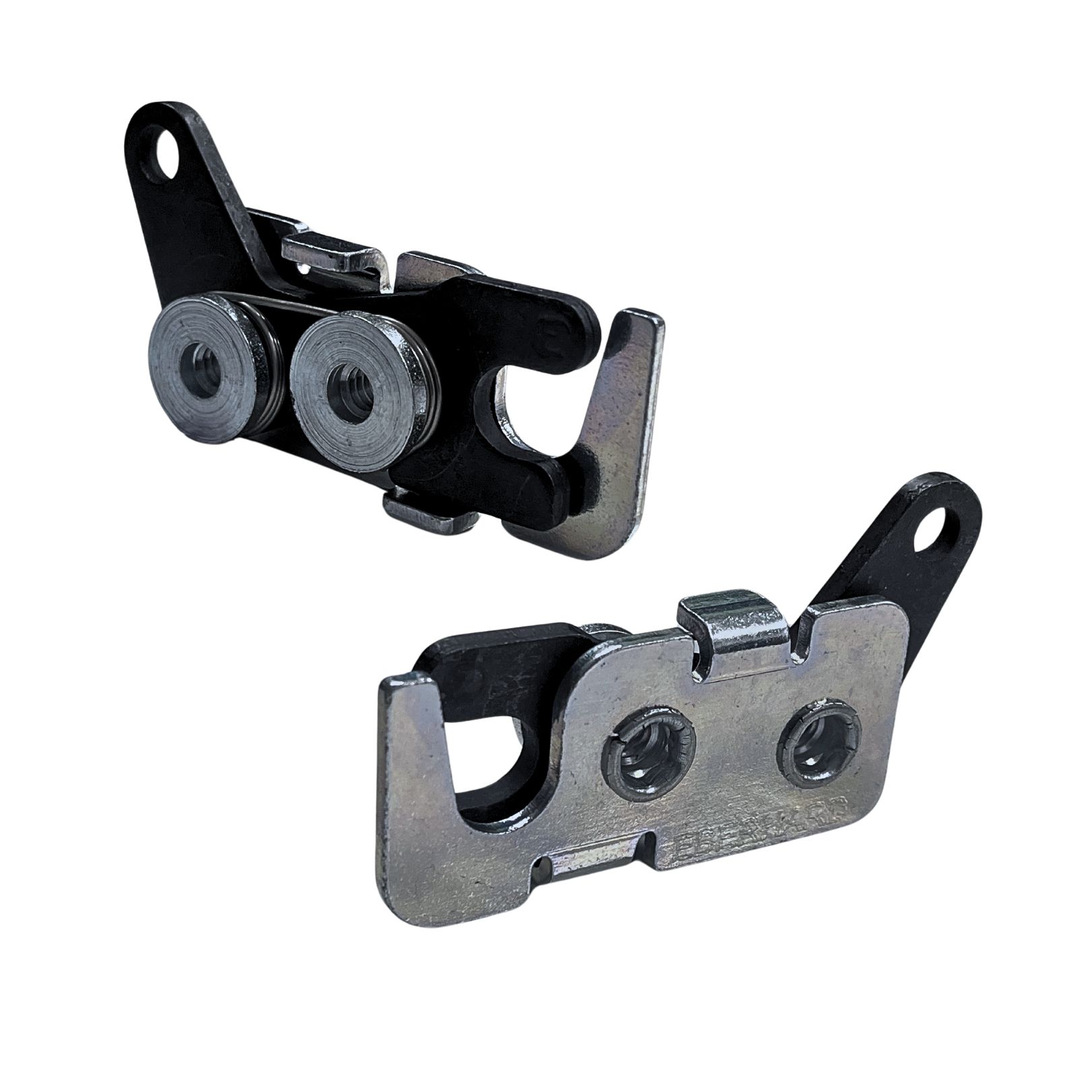

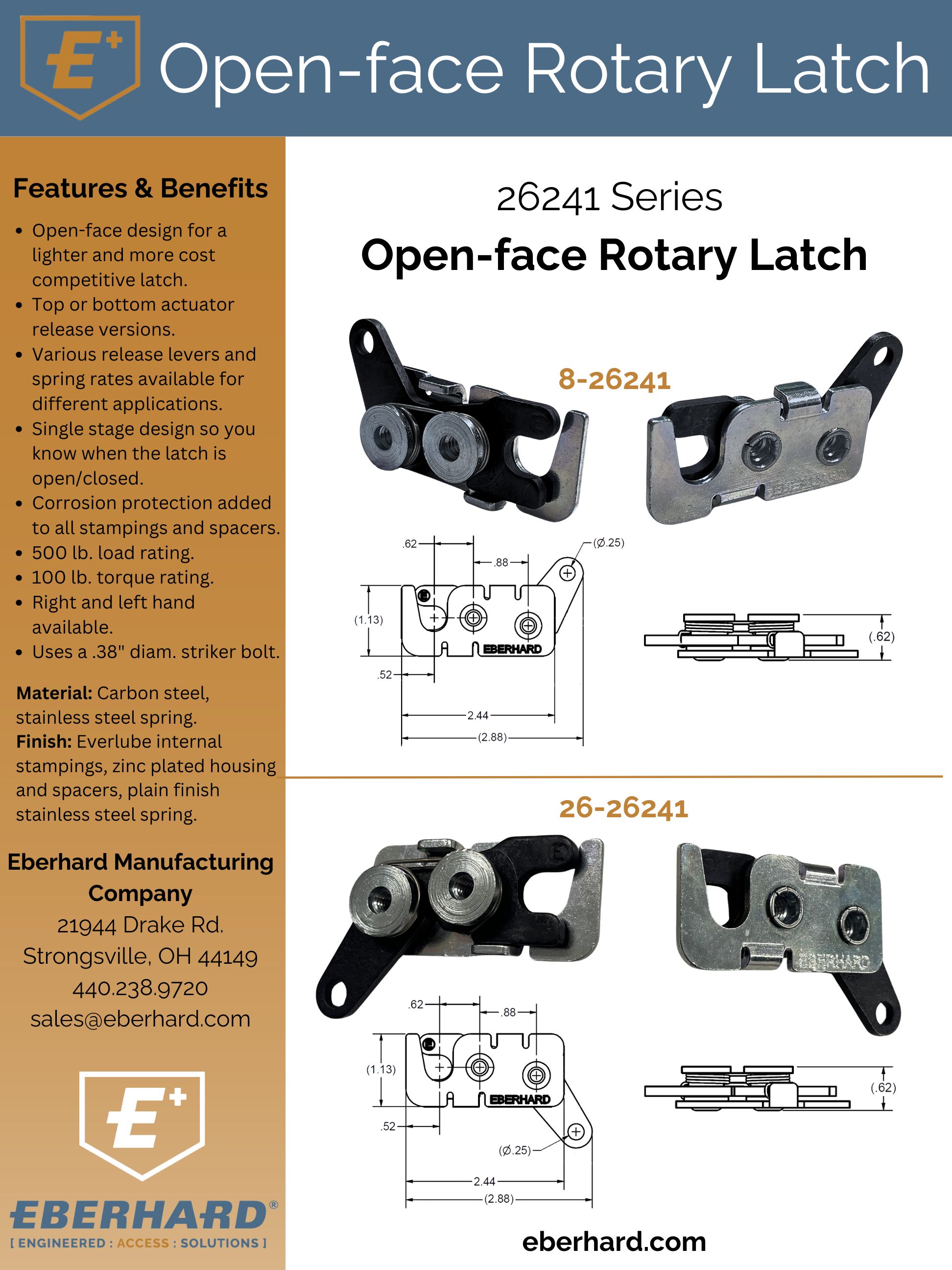

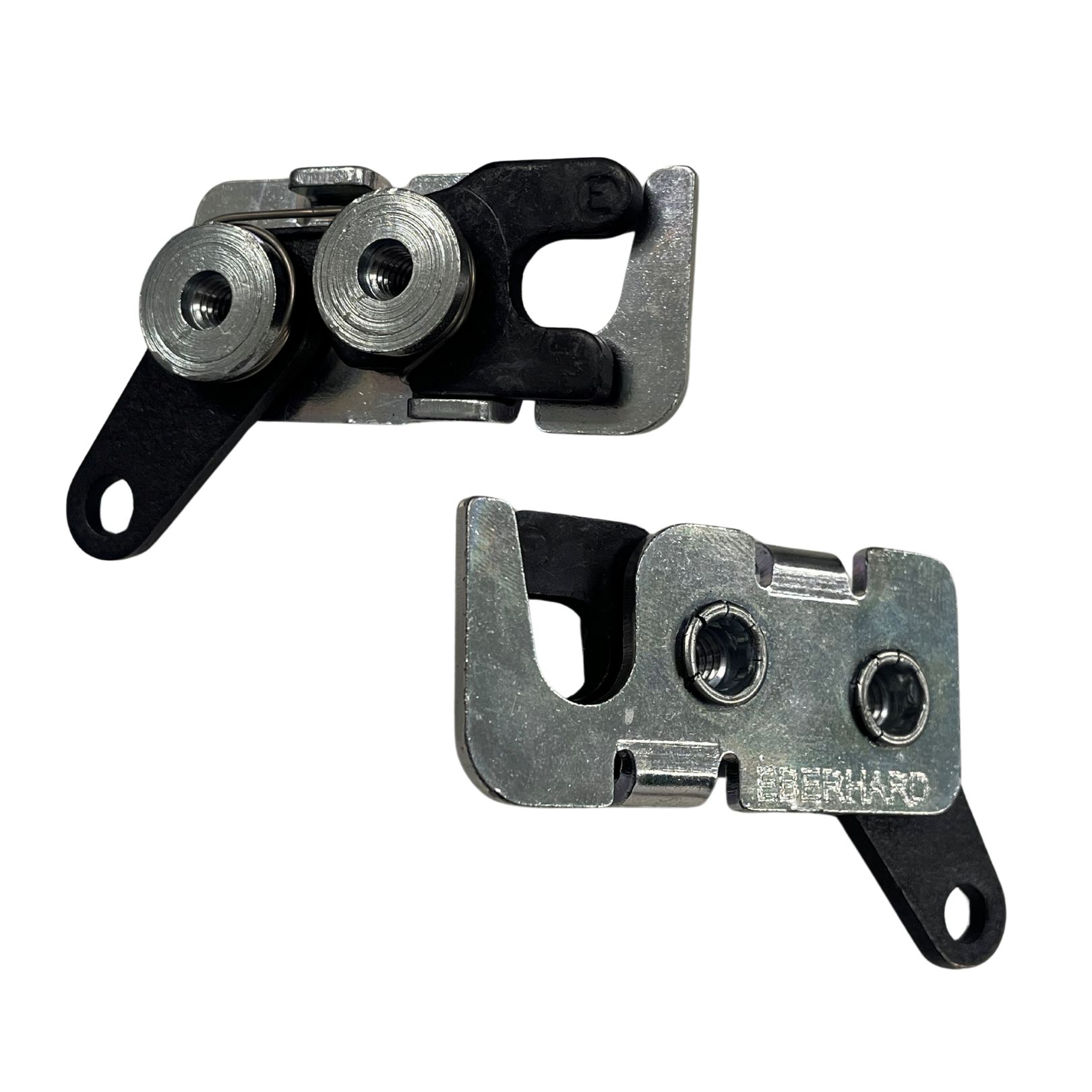

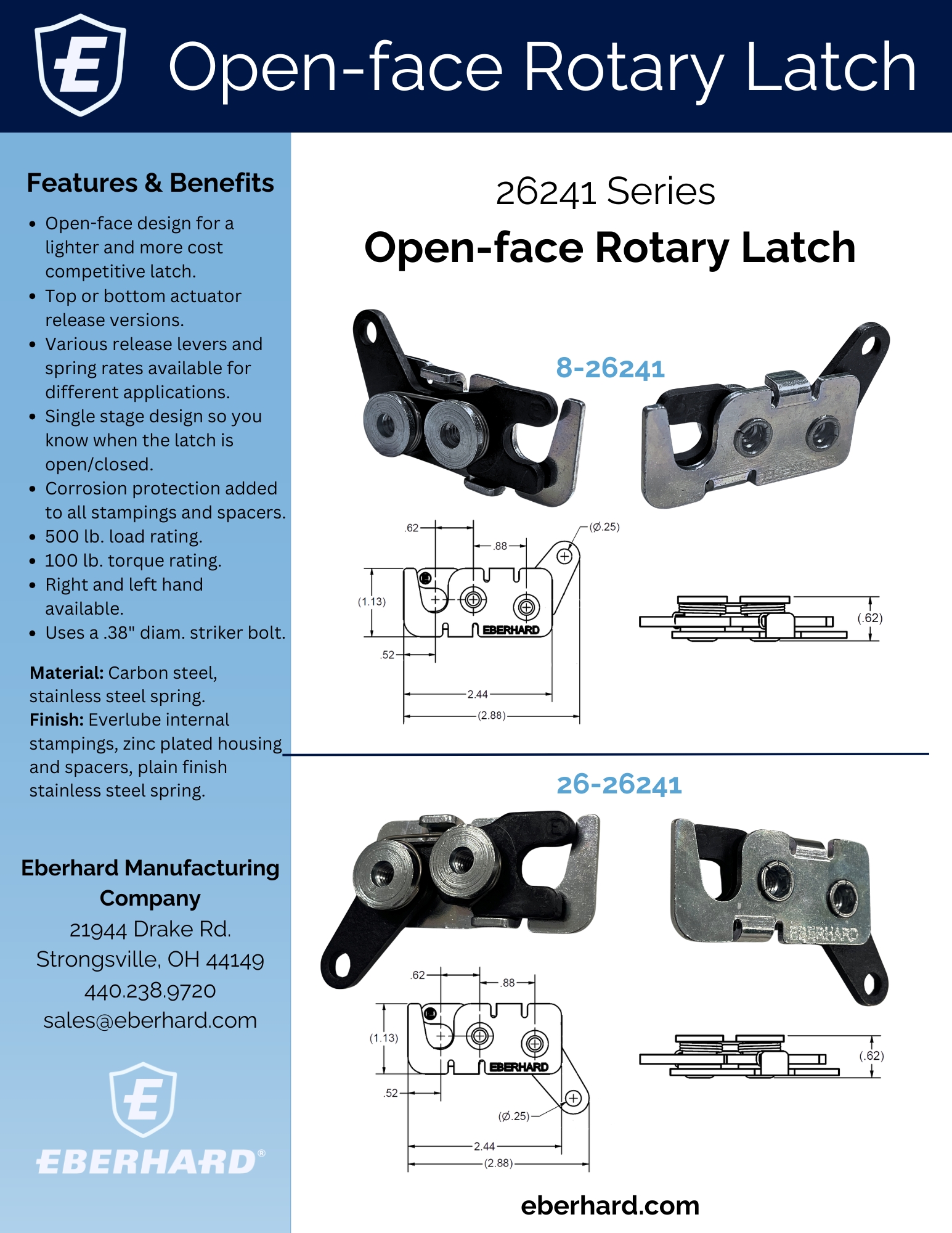

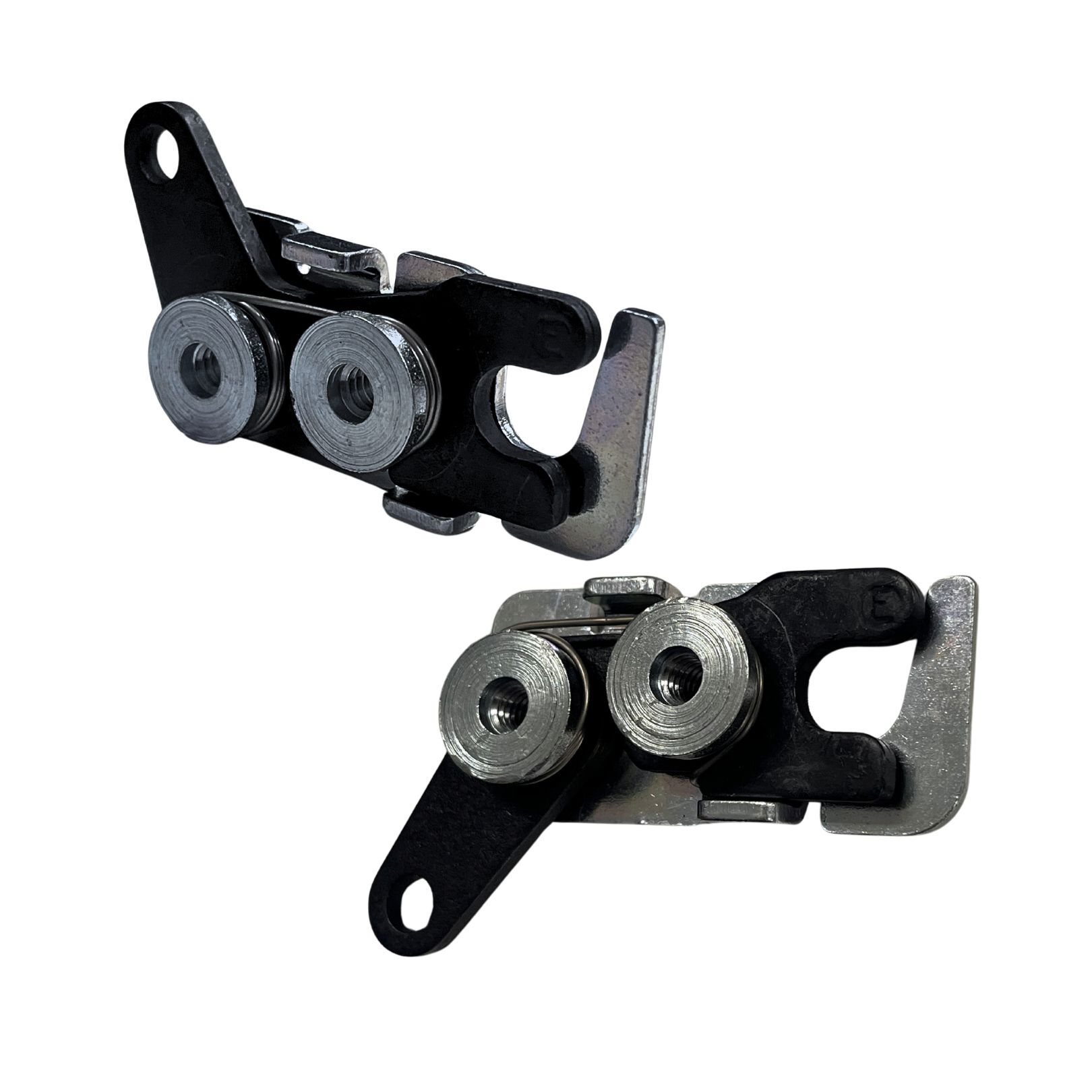

26241 Series

Open-Face Mini Rotary Latch

  • Right or left hand
  • Top or bottom actuator release options
  • Various spring release options
  • Single stage latching
  • Rated to a max load of 500lbs

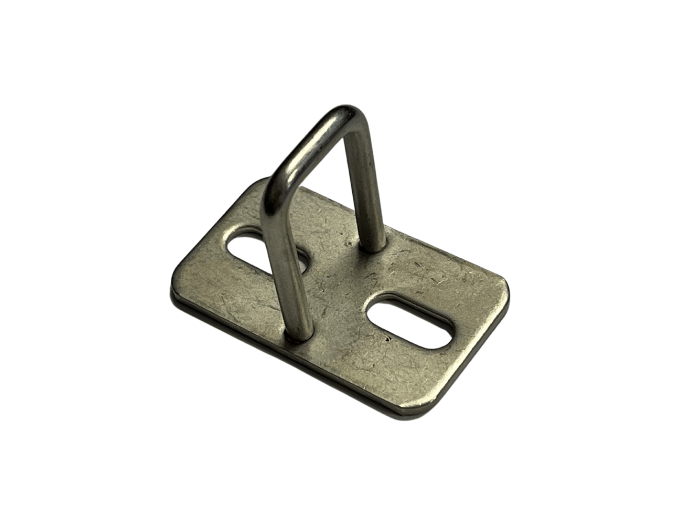

  • To be used with a .38" diameter striker pin
Part Number Finish Material Size Handed FMVSS 206 Rated Stages Mounting Striker Size Download
8-26241-R-24 Zinc Steel 2.88"L x .62"W x 1.13"H Right No Single 1/4" thru holes .38" 2D, 3D
8-26241-L-24 Zinc Steel 2.88"L x .62"W x 1.13"H Left No Single 1/4" thru holes .38" 2D, 3D
26-26241-R-24 Zinc Steel 2.88"L x .62"W x 1.13"H Right No Single 1/4" thru holes .38" 2D, 3D
26-26241-L-24 Zinc Steel 2.88"L x .62"W x 1.13"H Left No Single 1/4" thru holes .38" 2D, 3D
