8-247 Series

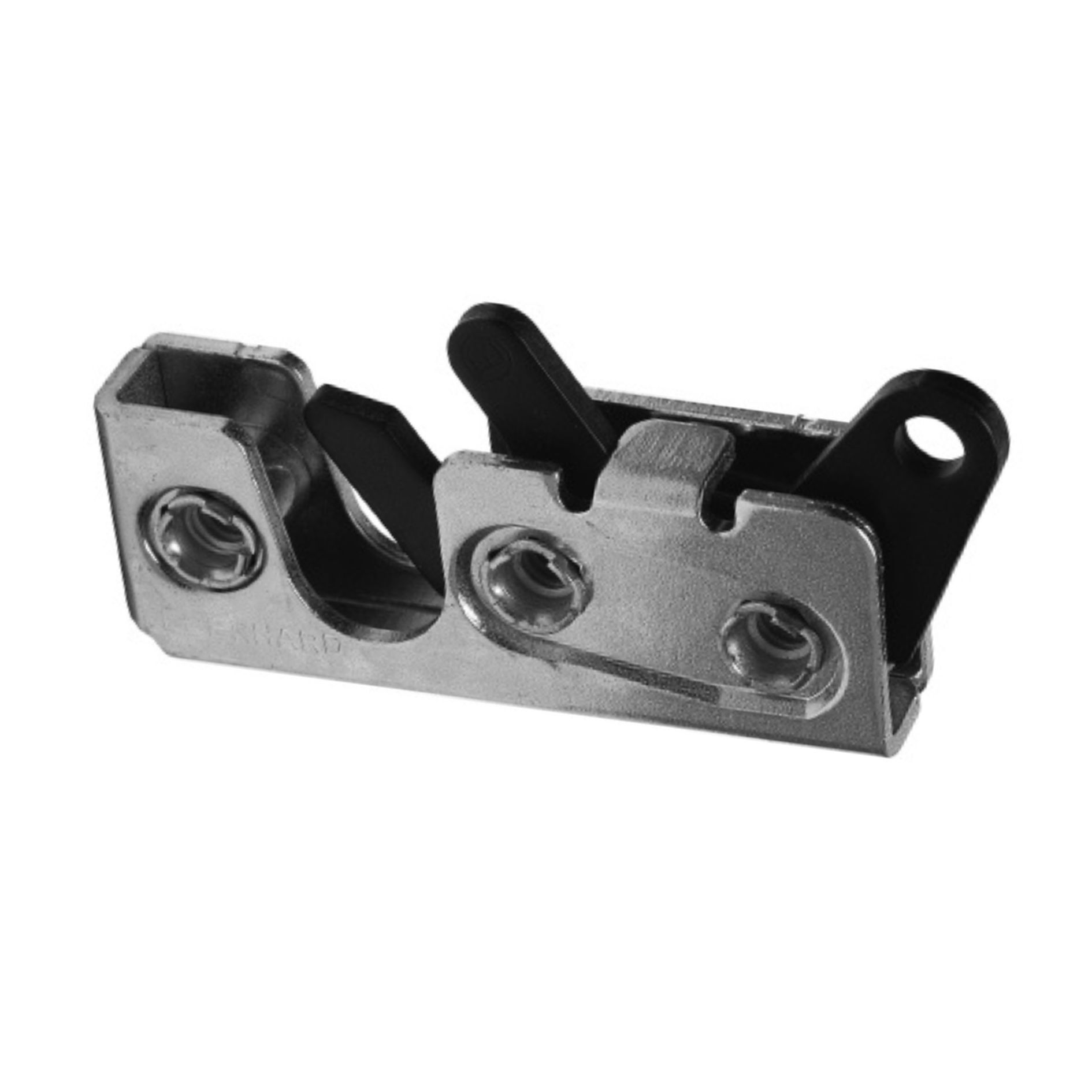

Mini Rotary Latch

Right or left hand
Single stage latching
Single, vertical actuator for remote operation
Heavy return spring
Rated to a max load of 750lbs
To be used with a .38" diameter striker pin

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Extras	Striker Size	Download
8-247-BR-54	Zinc	Steel	2.96"L x .58"W x 1.12"H	Right	No	Single	1/4" x 20 threaded holes	With heavy spring	.38"	2D, 3D
8-247-BL-54	Zinc	Steel	2.96"L x .58"W x 1.12"H	Left	No	Single	1/4" x 20 threaded holes	With heavy spring	.38"	2D, 3D
