Rotary Latches and Strikers

hgfhgfhfgh

Load N Lock Series
Mini Rotary Latch

This design features intuitive adapters, keeping the cables/rods in line with the actuator and close to the panel surface, which reduces the activation angle and trigger force.

Right or left hand
Single stage latching
Bottom eyelet and set screw actuator for remote operation
Light or standard return spring
Rated to a max load of 750lbs
To be used with a .38" diameter striker pin

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Extras	Striker Size	Download

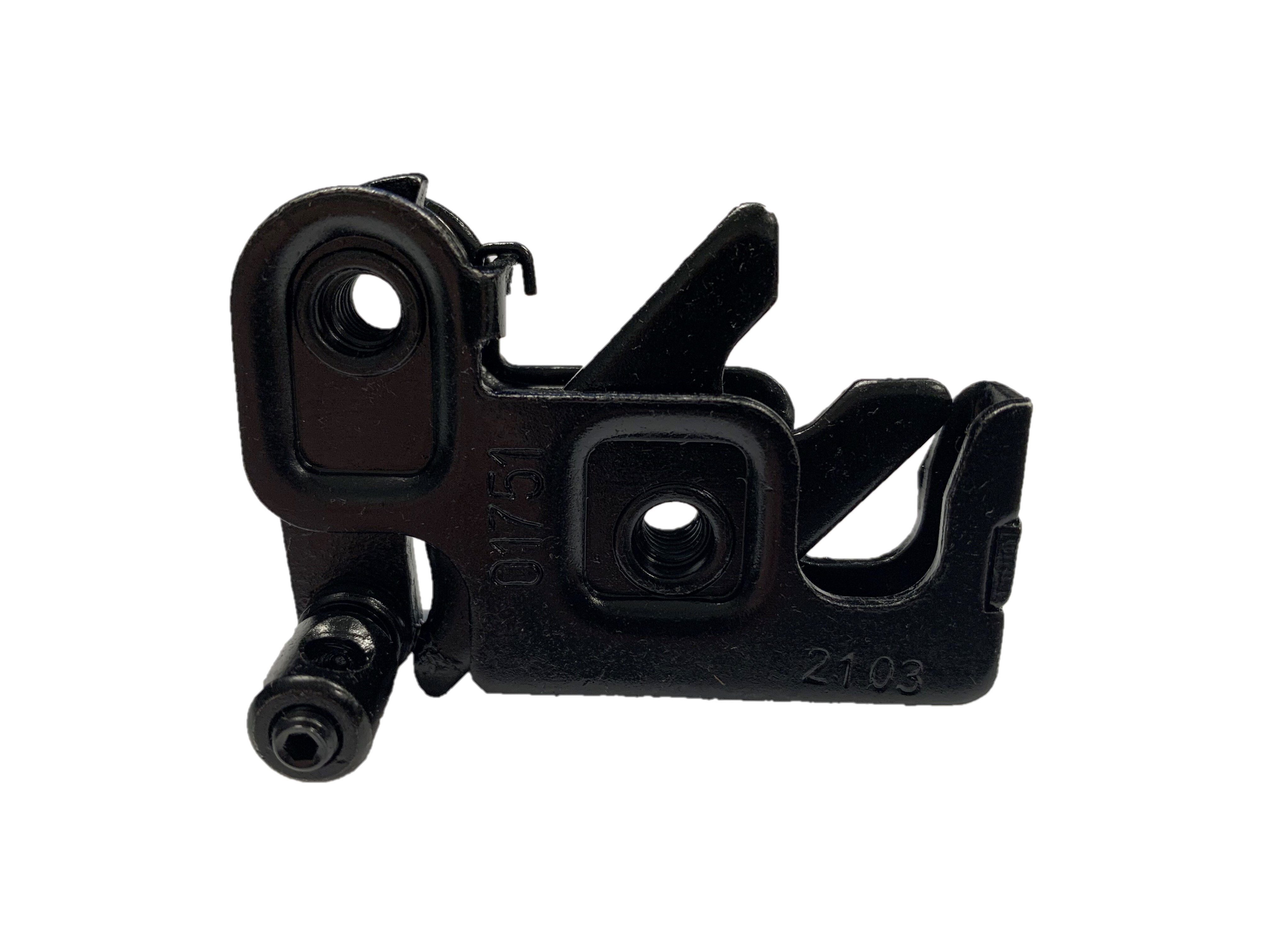

LNL-77-01751	Black e-coat	Steel	2.50"L x .62"W x 1.72"H	Left	No	Single	1/4" x 20 threaded holes	With cable/rod adapter, light spring	.38"	2D, 3D
LNL-77-01750	Black e-coat	Steel	2.50"L x .62"W x 1.72"H	Right	No	Single	1/4" x 20 threaded holes	With cable/rod adapter, light spring	.38"	2D, 3D
LNL-77-00750	Black e-coat	Steel	2.50"L x .62"W x 1.72"H	Right	No	Single	1/4" x 20 threaded holes	With cable/rod adapter	.38"	2D, 3D
LNL-77-00751	Black e-coat	Steel	2.50"L x .62"W x 1.72"H	Left	No	Single	1/4" x 20 threaded holes	With cable/rod adapter	.38"	2D, 3D
