Load N Lock Series

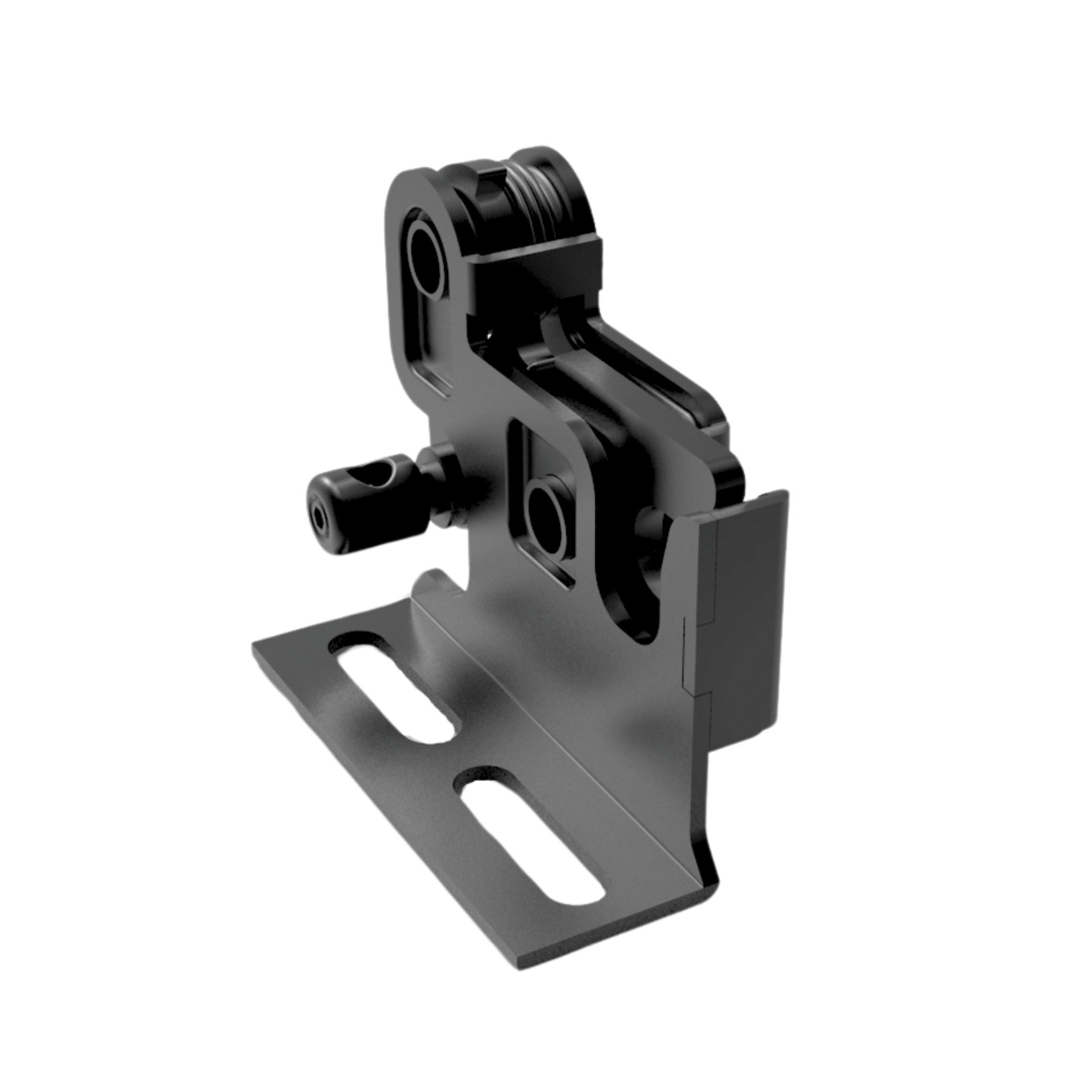

Bracket Mount Mini Rotary Latch

This design features intuitive adapters, keeping the cables/rods in line with the actuator and close to the panel surface, which reduces the activation angle and trigger force.

Right or left hand
Single stage latching
Integral mounting bracket
Bottom eyelet and set screw actuator for remote operation
Rated to a max load of 750lbs
To be used with a .38" diameter striker pin

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Extras	Striker Size	Download
LNL-77-00289	Black e-coat	Steel	2.61"L x 1.42"W x 2.23"H	Left	No	Single	1/4" x 20 threaded holes	With bracket	.38"	2D, 3D
LNL-77-00287	Black e-coat	Steel	2.61"L x 1.42"W x 2.23"H	Right	No	Single	1/4" x 20 threaded holes	With bracket	.38"	2D, 3D
