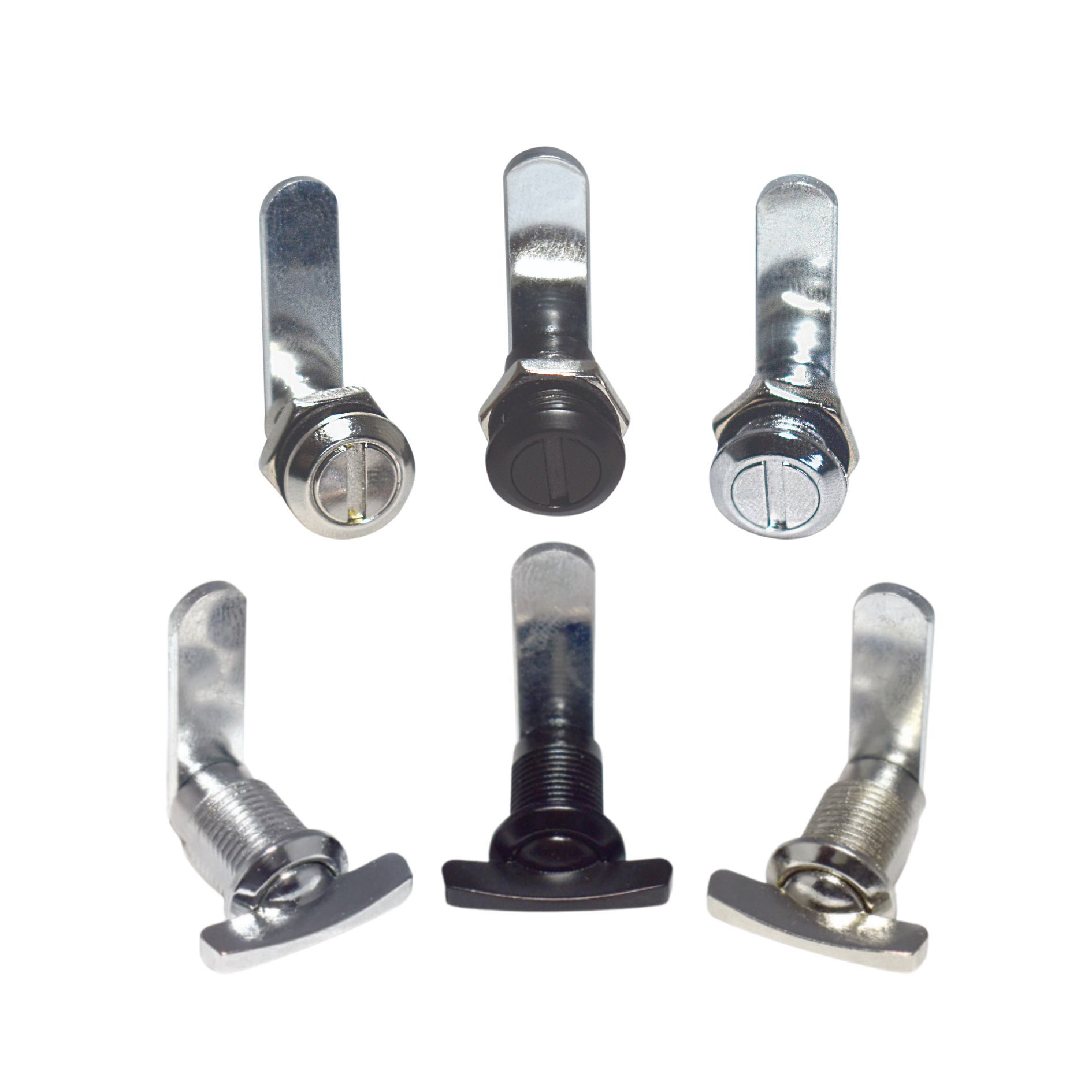

3091/3092 Series
Mini Wing and Slot Cam Locks

Non-locking 90 degree CW rotation
Easy operation using screwdriver or coin (DSL3092 series)
Easy operation using thumb and finger (DTL3091 series)
Internal o-ring
Ball detent for haptic feedback
Two key pulls
Two keys included

Part Number	Finish	Material	Length	Shelf Pack	Master Carton	Download
DSL3092L - CHROME	Chrome	Die cast	0.625	10	200	Spec sheet
DSL3092L - BLACK	Black	Die cast	0.625	10	200	Spec sheet
DSL3092L - NICKEL	Nickel	Die cast	0.625	10	200	Spec sheet
DTL3091L - CHROME	Chrome	Die cast	0.625	10	200	Spec sheet
DTL3091L - BLACK	Black	Die cast	0.625	10	200	Spec sheet
DTL3091L - NICKEL	Nickel	Die cast	0.625	10	200	Spec sheet

Overview

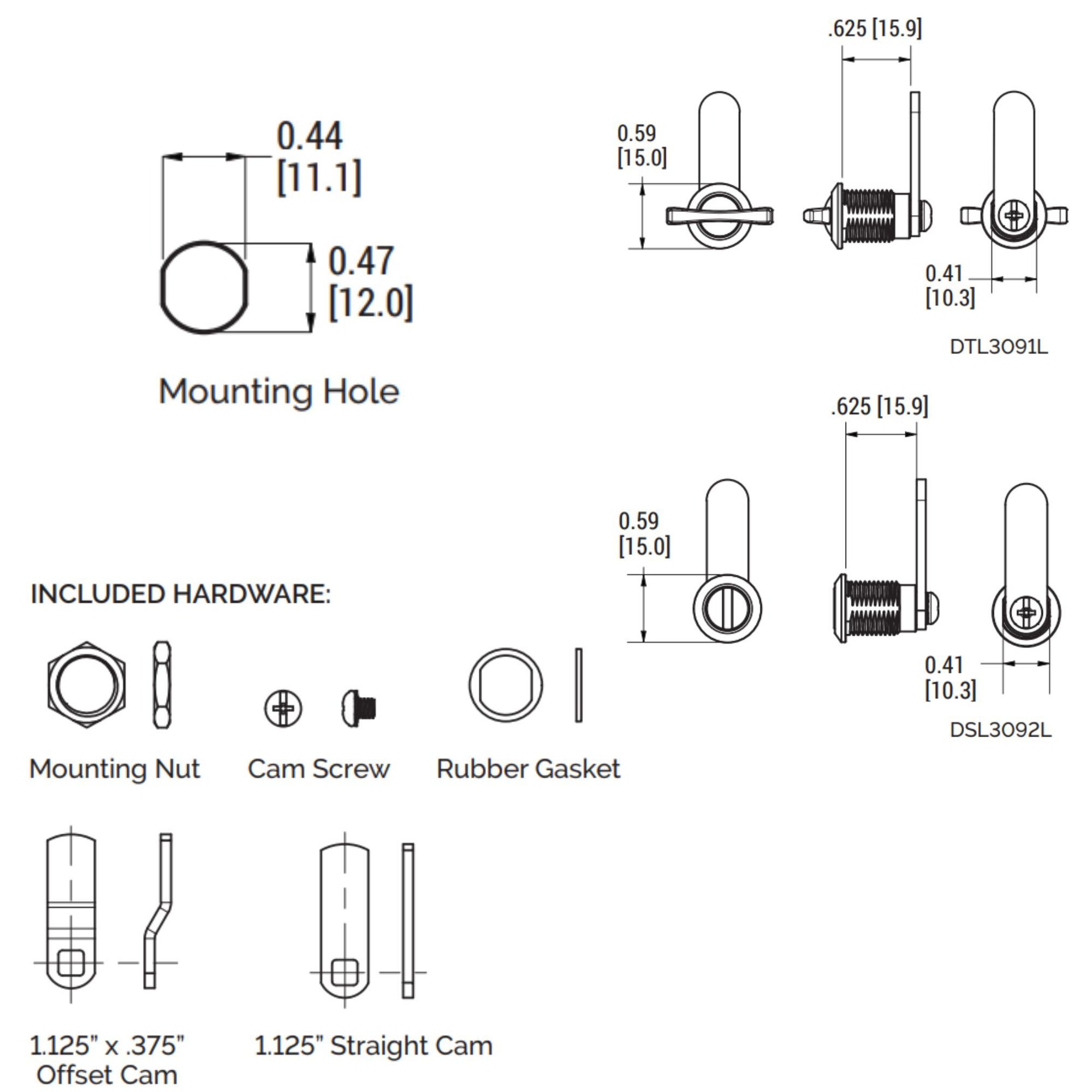

Cam Rotation & Installation

Cam Types
