Cam Locks

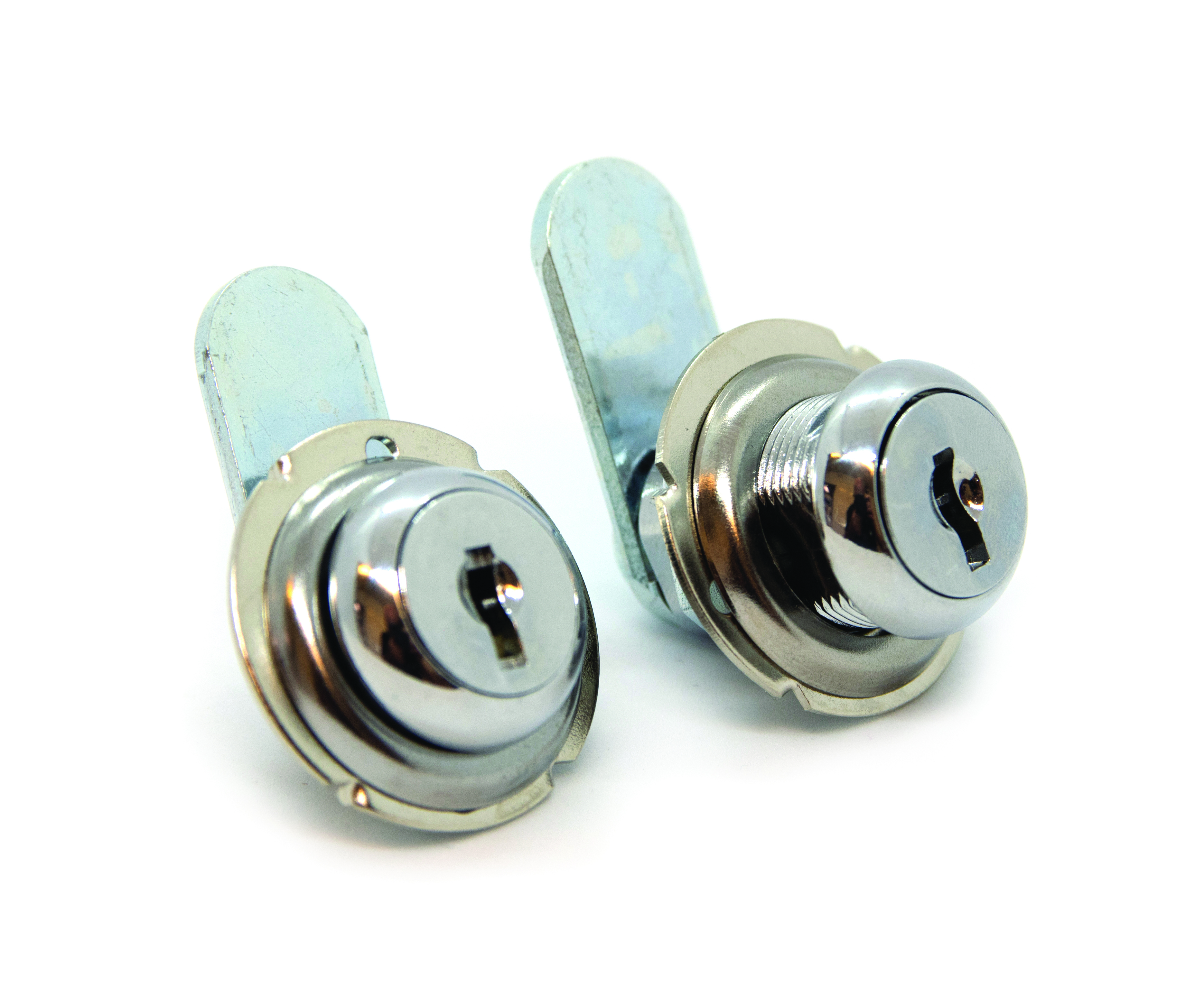

650/651 Series Single Bitted Cam Locks
- 90 degree/180 degree CW/CCW rotation
- Spline filler included
- One or two key pulls
- Two keys included
- Five tumbler
Purchase includes:
Product Specifications
| Part Number | Material | Finish | Keyed | Length | Lock Series | Shelf Pack | Master Carton | Download |
|---|---|---|---|---|---|---|---|---|
| 65102 | Die-Cast | Zinc, chrome | KA-8025 | .438" | C651XS | 25 | 200 | |
| 65004 | Die-Cast | Zinc, chrome | KA-8025 | .625" | C650S | 25 | 200 | |
| 65005 | Die-Cast | Zinc, chrome | KA-8025 | .875" | C650M | 25 | 200 | |
| 65006 | Die Cast | Zinc, chrome | KA-8025 | 1.125" | C650L | 25 | 200 | |
| 65104 | Die-Cast | Zinc, chrome | KA-CH751 | .438" | C651XS | 25 | 200 | |
| 65010 | Die-Cast | Zinc, chrome | KA-CH751 | .625" | C650S | 25 | 200 | |
| 65011 | Die Cast | Zinc, chrome | KA-CH751 | .875" | C650M | 25 | 200 | |
| 65012 | Die Cast | Zinc, chrome | KA-CH751 | 1.125" | C650L | 25 | 200 | |
| 65101 | Die-Cast | Zinc, chrome | KA-C415A | .438" | C651XS | 25 | 200 | |
| 65001 | Die-Cast | Zinc, chrome | KA-C415A | .625" | C650S | 25 | 200 | |
| 65002 | Die-Cast | Zinc, chrome | KA-C415A | .875" | C650M | 25 | 200 | |
| 65003 | Die-Cast | Zinc, chrome | KA-C415A | 1.125" | C650L | 25 | 200 | |
| 65103 | Die-Cast | Zinc, chrome | KD-700-724 | .438" | C651XS | 25 | 200 | |
| 65007 | Die-Cast | Zinc, chrome | KD-700-724 | .625" | C650S | 25 | 200 | |
| 65008 | Die-Cast | Zinc, chrome | KD-700-724 | .875" | C650M | 25 | 200 | |
| 65009 | Die-Cast | Zinc, chrome | KD-700-724 | 1.125" | C650L | 25 | 200 |
