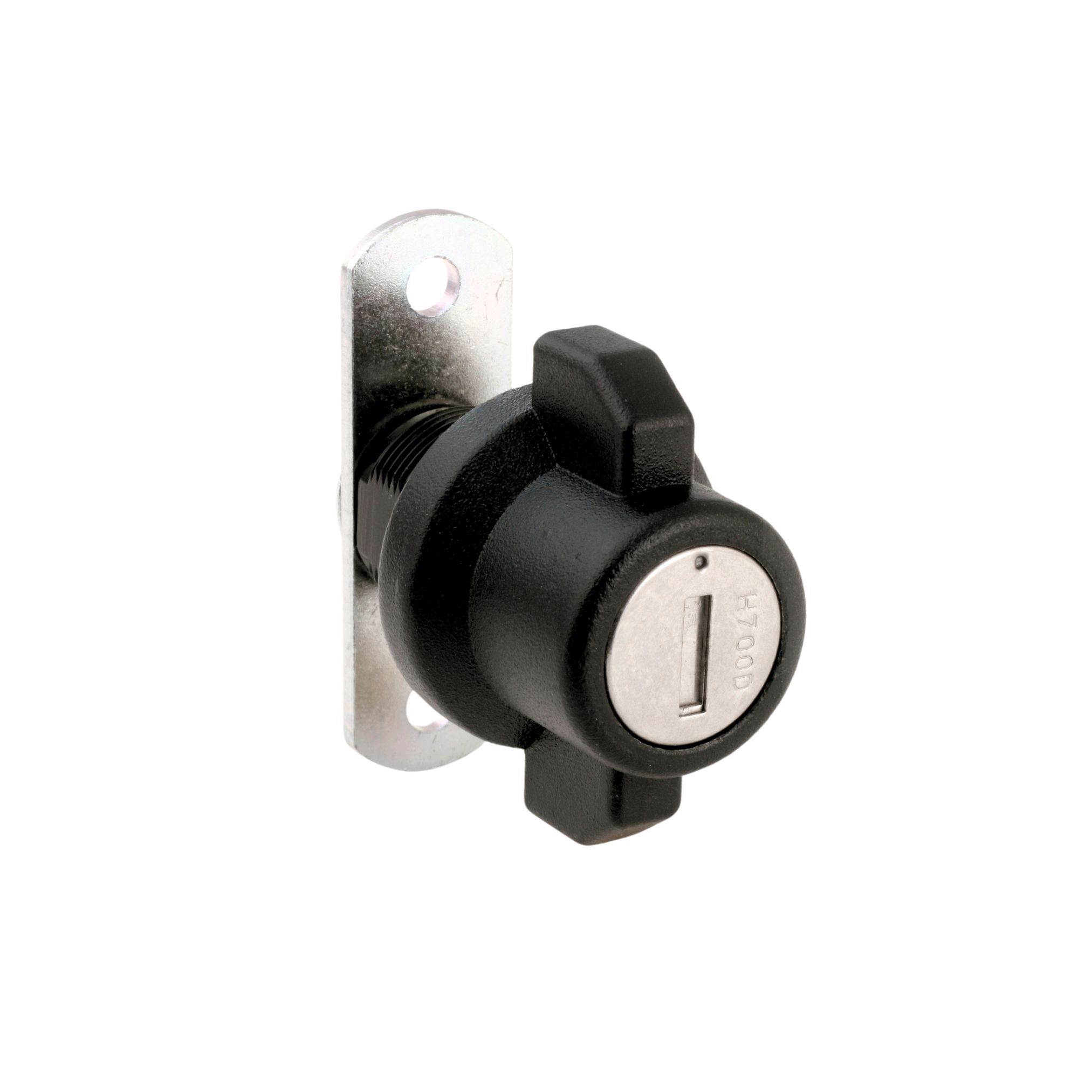

Cam Locks
| Part Number | Finish | Material | Spring Return | Housing Length | Download |
|---|---|---|---|---|---|
| DC690S | Black | Alloy | Yes | 5/8 | Spec sheet |
| DC695S | Black | Alloy | No | 5/8 | Spec sheet |
| DC690M | Black | Alloy | Yes | 7/8 | Spec sheet |
| DC695M | Black | Alloy | No | 7/8 | Spec sheet |
| DC690L | Black | Alloy | Yes | 1-1/8 | Spec sheet |
| DC695L | Black | Alloy | No | 1-1/8 | Spec sheet |
| DC690XXL | Black | Alloy | Yes | 1-5/8 | Spec sheet |
| DC695XXL | Black | Alloy | No | 1-5/8 | Spec sheet |
| DC690XXXXL | Black | Alloy | Yes | 2-1/8 | Spec sheet |
| DC695XXXXL | Black | Alloy | No | 2-1/8 | Spec sheet |
Accessories + Replacement PartsOverview
Cam Rotation & Installation

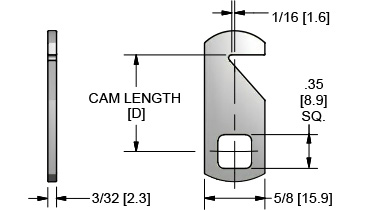

Cam Types
Accessories/Replacement Parts
Cam Screw 1/4-28
PN: S23032G
Nut Lock
PN: S9003A
Barrel Nut M19
PN: D9868
Spur Washer
PN: S2302A
Spur Washer
PN: S2302B
Anchor Washer
PN: S6951
Flat Washer
PN: S2313
Speed-Clip
PN: HS6397
