DC694

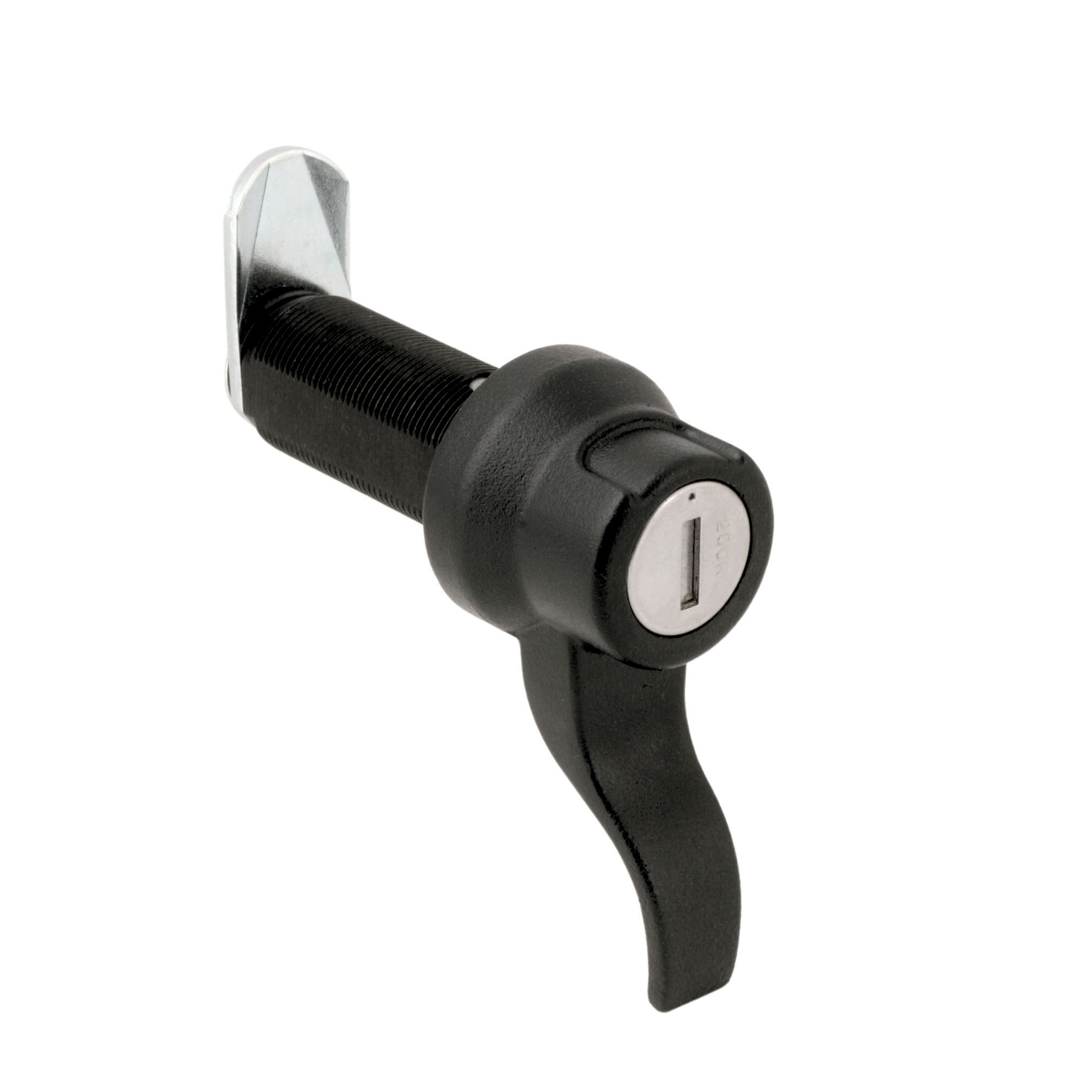

Wing Handle Finger Pull Cam Lock

Resists moisture, dust, salt and extreme temperatures
Built in finger pull
Various cams available
Available keyed alike or keyed different
200 key changes
Automotive style dust shutter and reversible key with optional plastic over molding

Part Number	Finish	Material	Spring Return	Length	Rotation	Download
DC694	Black	Alloy	No	1.625	90 degree knob turn, 180 degree key turn	Spec sheet

Accessories + Replacement Parts

Overview

Cam Rotation & Installation

Cam Types

Accessories/Replacement Parts

Steel Washer

PN: SS9162

Cam Screw 1/4-28

PN: S23032G

Rubber Gasket

PN: R7163

Nut Lock

PN: S9003A

Barrel Nut M19

PN: D9868

Spur Washer

PN: S2302A

Spur Washer

PN: S2302B

Anchor Washer

PN: S6951

Flat Washer

PN: S2313

Speed-Clip

PN: HS6397

Anchor Plate

PN: S2315A
