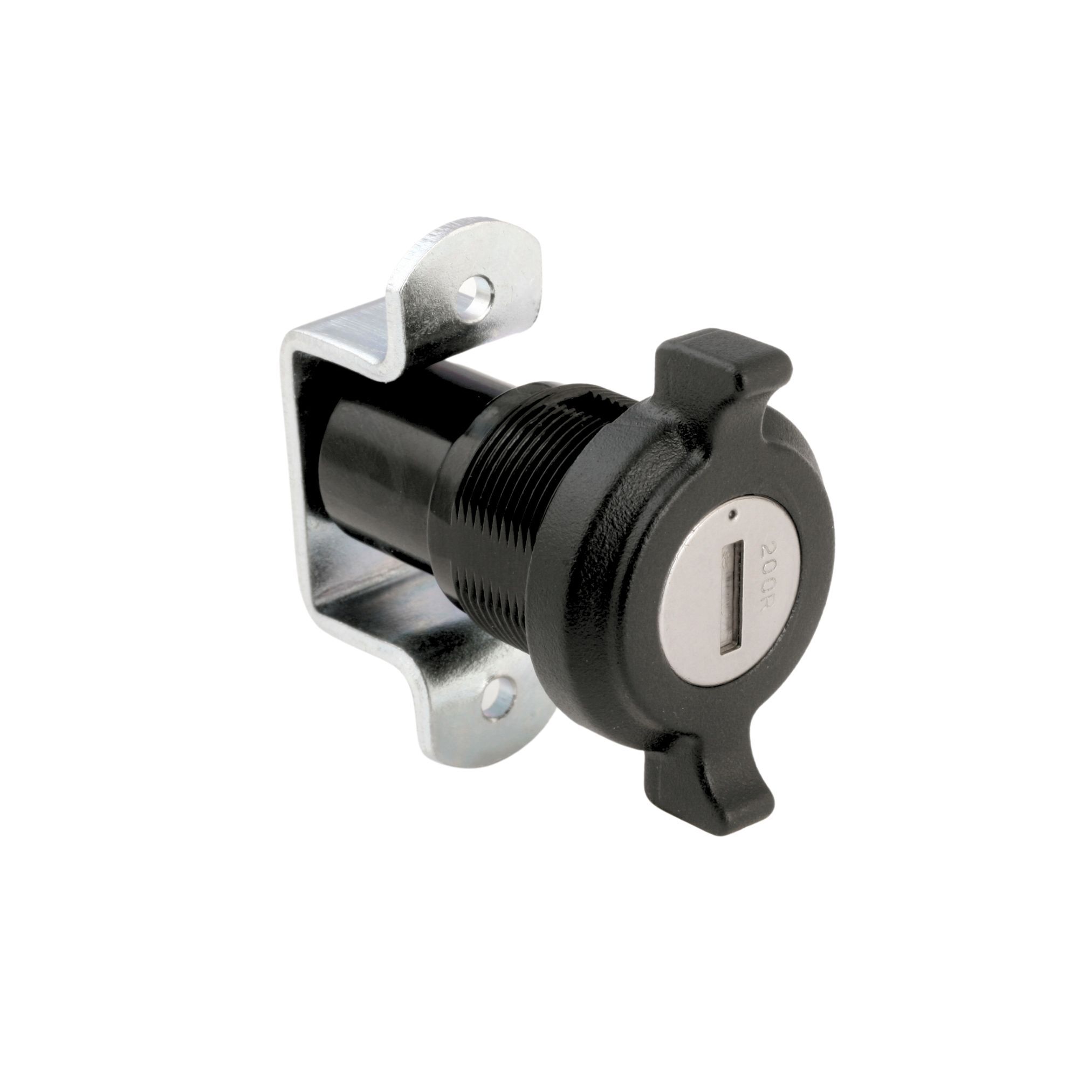

DC691/DC696 Series
Weather Resistant Wing Handle Cam Locks

Resists moisture, dust, salt, and extreme temperatures
Various cams, rotations, and key pulls
Available keyed alike or keyed different in multiple lengths
200 key changes
Automotive style dust shutter and reversible key with optional plastic over molding
Can be used with rotary/slam latches

Part Number	Finish	Material	Spring Return	Housing Length	Download
DC691	Black	Alloy	Yes	1.332	Spec sheet
DC696	Black	Alloy	No	1.332	Spec sheet

Accessories + Replacement Parts

Overview

Cam Rotation & Installation

Cam Types

Accessories/Replacement Parts

Spur Washer

PN: S8952

Barrel Nut 15/16-24

PN: D9166

Rubber Gasket

PN: P9267

Cam Screw 1/4-28

PN: S23032G
