19400 Series

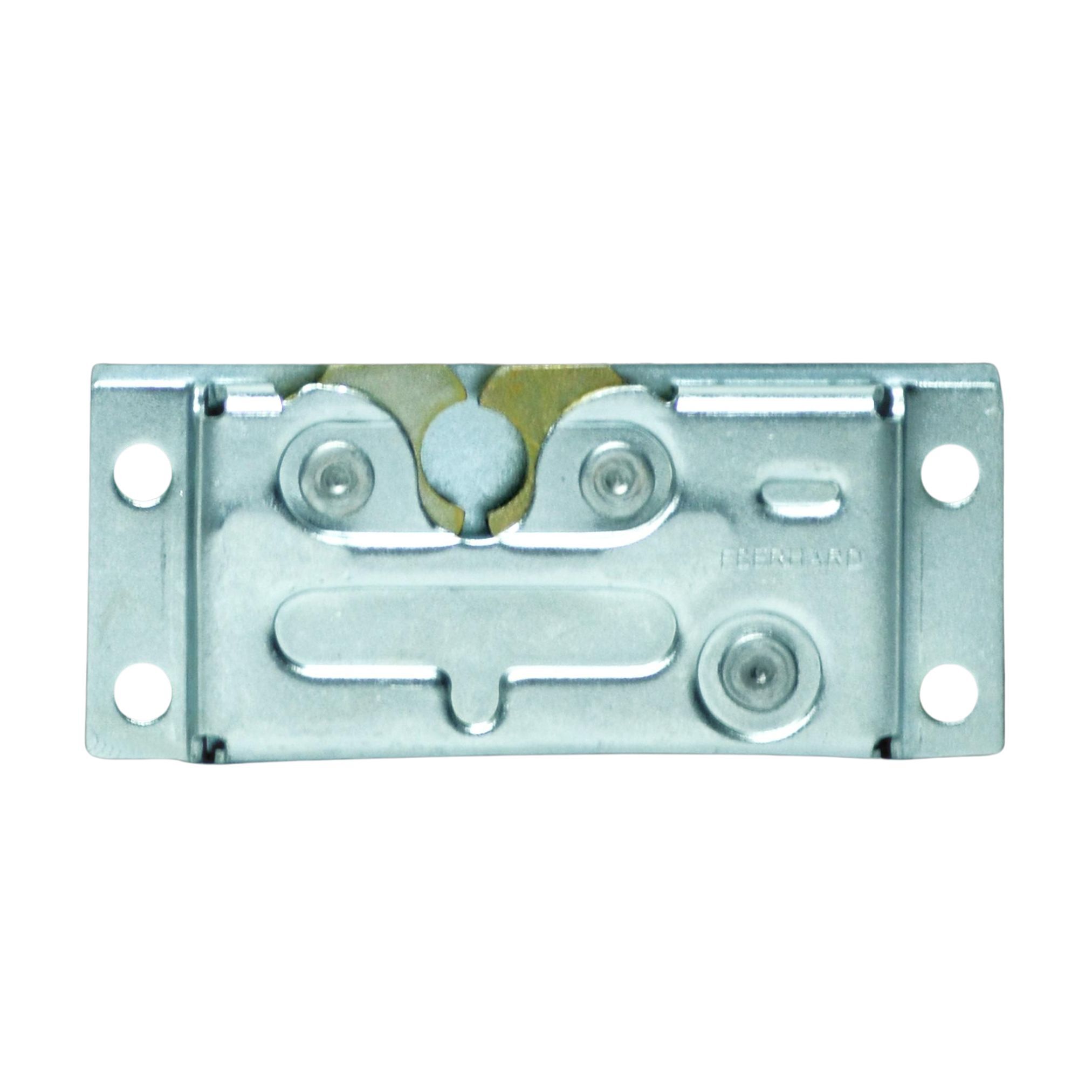

Large Rotary Latch

Right or left hand
Dual stage latching
To be used with a .62" diameter striker pin
Rated to a max load of 750lbs
To be used with our 19400 series mating actuators
Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Striker Size	Download
19400-L-BG	Zinc	Steel	5.25"L x .72"W x 2.30"H	Left	Yes	Dual	.33" thru holes	.62"	2D, 3D
19400-R-BG	Zinc	Steel	5.25"L x .72"W x 2.30"H	Right	Yes	Dual	.33" thru holes	.62"	2D, 3D
