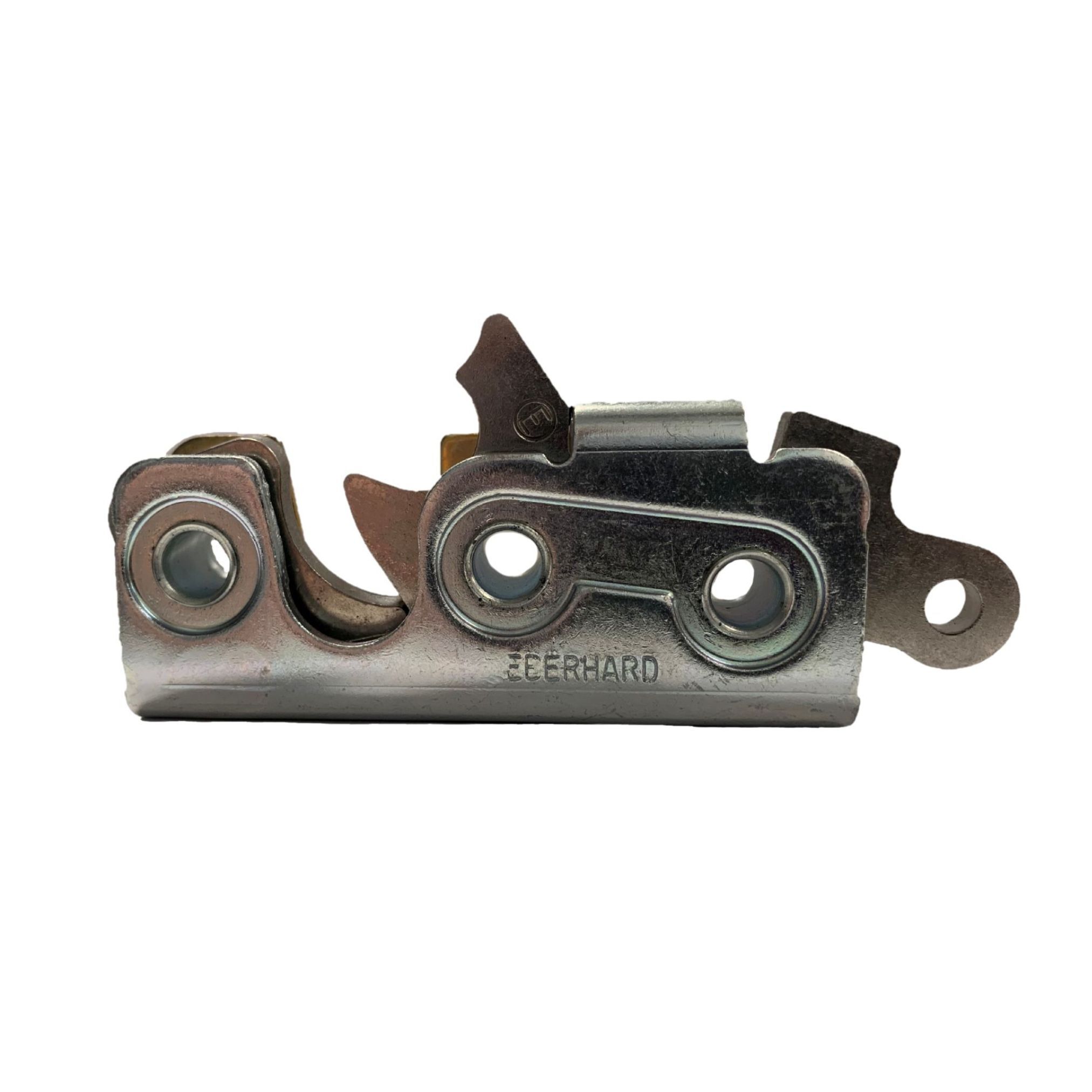

20X-17400 Series
Large Rotary Latch

Right or left hand
Dual stage latching
Multiple material/finish options
Single, vertical actuator for remote operation
Rated to a max load of 750lbs
To be used with a .55" diameter striker pin

Part Number	Finish	Material	Size	Handed	FMVSS 206 Rated	Stages	Mounting	Striker Size	Download
20X-17400-L-24	Zinc	Steel	3.63"L x .77"W x 1.62"H	Left	No	Dual	.32" thru holes	.55"	2D, 3D
20X-17400-R-24	Zinc	Steel	3.63"L x .77"W x 1.62"H	Right	No	Dual	.32" thru holes	.55"	2D, 3D
20X-17400-SSR-BG	Passivated	Stainless steel	3.63"L x .77"W x 1.62"H	Right	No	Dual	.32" thru holes	.55"	2D, 3D
